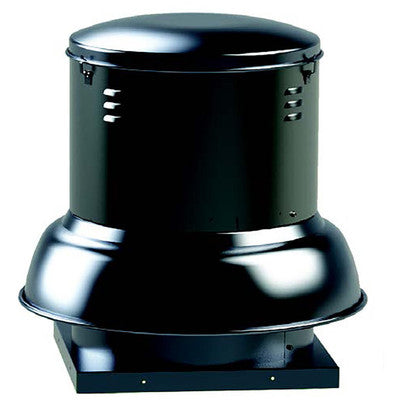

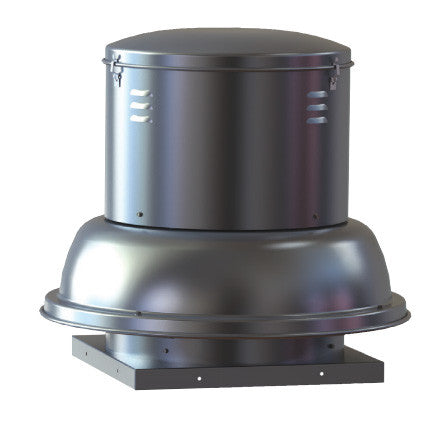

Soler & Palau SDB16RH1S Belt Drive Centrifugal Roof Exhauster 3/4 hp

Product Description

The Soler & Palau SDB16RH1S is a belt drive centrifugal down blast roof exhauster. It efficiently exhausts air up to 4135 CFM in high static pressure applications. Features an attractive spun aluminum exterior and a curved non-overloading backward inclined wheel. Belt drives permit easy performance adjustments when needed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2", w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

Ideal for commercial, industrial, and institutional environments, ensuring efficient and quiet ventilation with easy performance adjustments.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB16RH1S
• Country of Origin: USA

Technical Specifications

• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM @ Zero Static Pressure: 3707
• Country of Origin: USA
• Drive Type: Belt
• Horsepower: 3/4
• Phase: 1 Phase
• RPM: 1300
• Speed: 1 Speed
• Voltage: Choice Dependent
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 16
• Max. BHP: 0.78
• Max. Static Pressure WG (in.): 1
• Sones Level: 17.6 @ 1/4 SP
• Roof Opening (in.): 19.5
• Width (in.): 32.875
• Depth (in.): 32.875
• Height (in.): 32.5
• Net Weight (lbs.): 110
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
