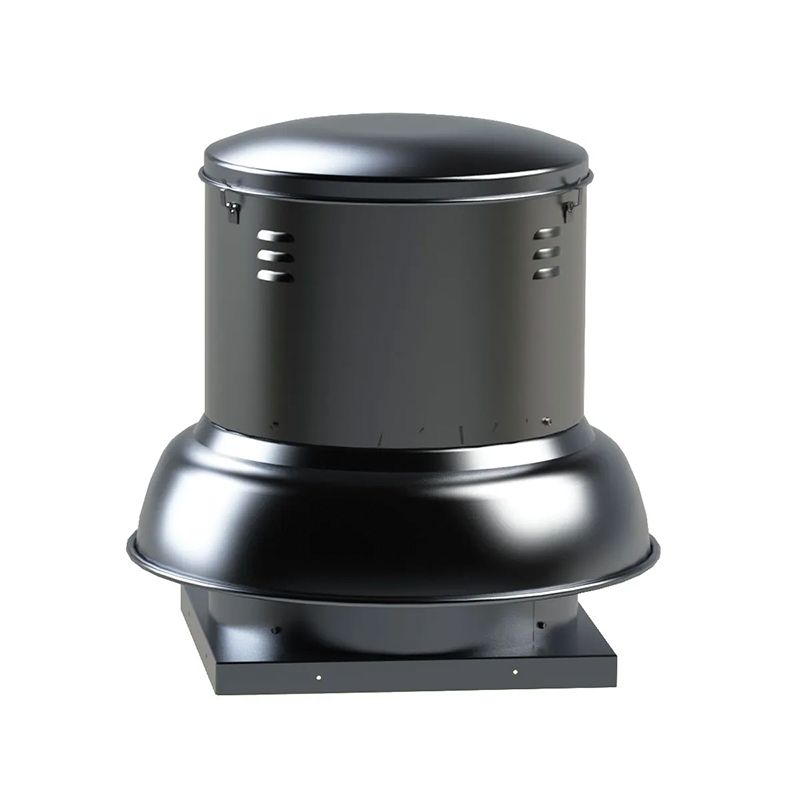

Soler & Palau SDB16QH1S Downblast Exhaust Fan 1/2HP 1Ph 1150 RPM

Product Description

The SOLER & PALAU SDB16QH1S downblast exhaust fan is designed for HVAC and refrigeration applications. This belt drive fan exhausts air up to 3279 CFM. Its belt drive results in lower operating RPM and sound levels, making it well-suited for applications where quiet operation is important.

• HVAC and Refrigeration
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

The SDB16QH1S downblast exhaust fan is ideal for commercial, industrial, and institutional environments. Its roof mounting allows for short duct runs and efficient operation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB16QH1S
• Country of Origin: United States

Technical Specifications

• Maximum CFM: 3279
• Motor RPM: 1150
• Horsepower: 0.5 HP - 0.75 HP
• Electrical: 120/240 V, Single Phase

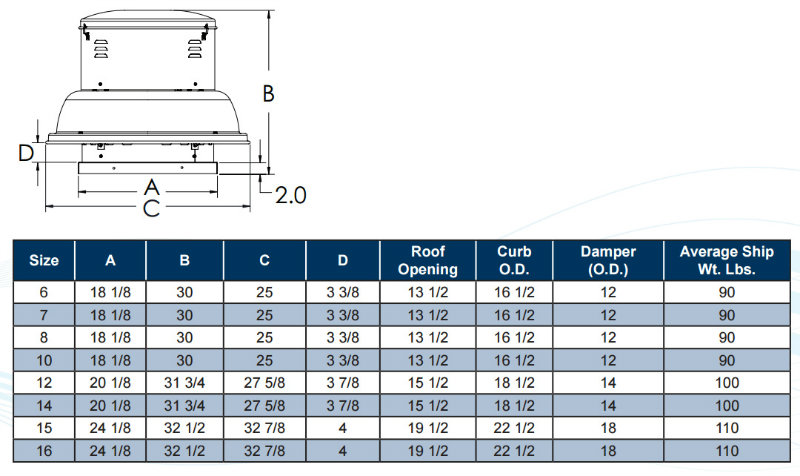

• Curb Cap Size: 24 x 24"
• Certification: HVI
• Height: 41.75"
• Width: 39.50"
• Depth: 39.50"
• Brand/Manufacturer: S&P
• Additional Information: Fits a 22 1/2 x 22 1/2 O.D. Curb
• Blower Motor: Single Phase
• Drive Type: Belt
• Blade Diameter: 16"
• Blade Material: Aluminum
• Hertz: 60
• Phase: 1 Phase
• RPM: 3279
• Speed: 1 Speed
• Voltage: 120
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 16
• Max. BHP: 0.54
• Max. Static Pressure WG (in.): 7/8
• Sones Level: 14.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 3279
• Roof Opening (in.): 19.5
• Net Weight (lbs.): 110
• Country of Origin: USA
• Made in the USA: Yes
