Soler & Palau SDB16PH1S Belt Drive Centrifugal Roof Exhauster 1/3 hp SDB16PH1S

Product Description

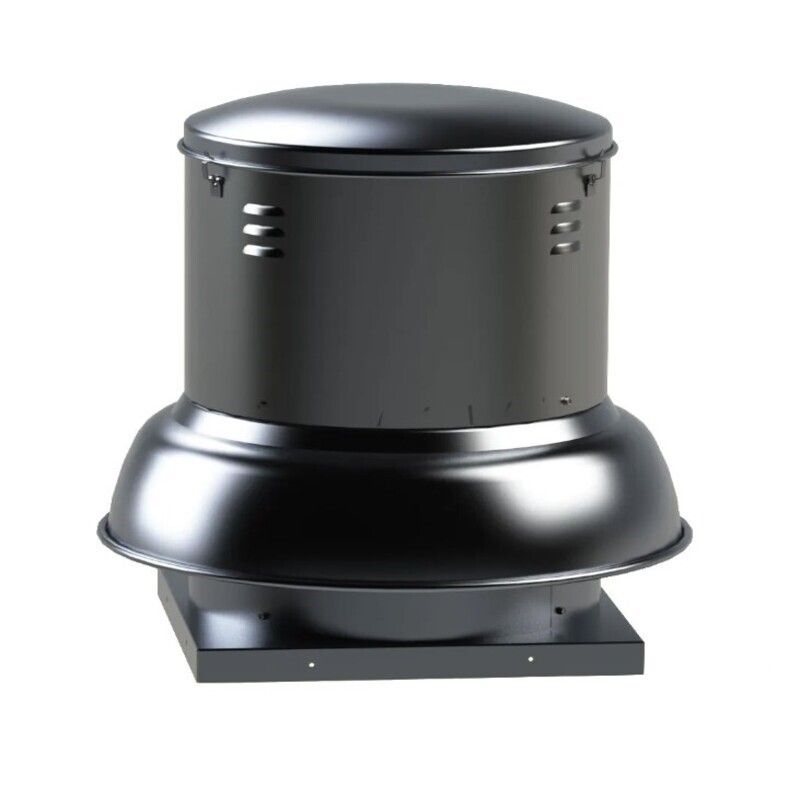

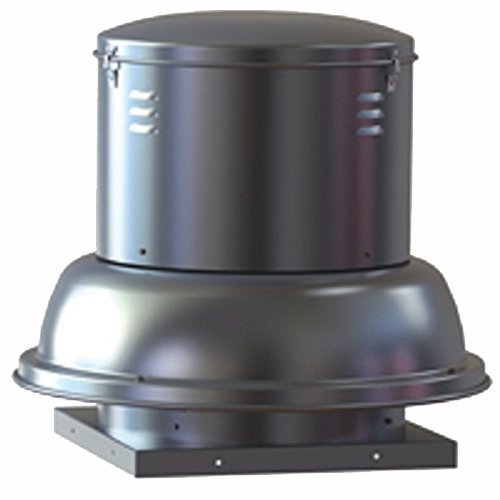

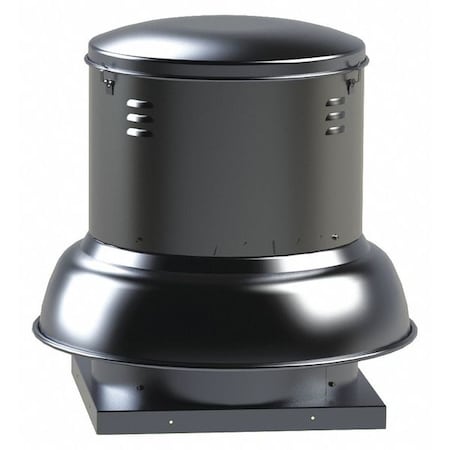

The SOLER & PALAU SDB16PH1S is a belt drive centrifugal downblast roof exhauster. It is designed to exhaust air up to 4135 CFM in high static pressure applications. Its belt drive results in lower operating RPM and sound levels, making it well suited for applications where quiet operation is important.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This roof exhauster features a curved non-overloading backward inclined wheel for efficiency at higher static pressures and is AMCA Air and Sound Licensed.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB16PH1S
• Country of Origin: United States

Technical Specifications

• Drive Type: Belt
• Blower Motor: Single Phase
• Motor RPM: 1000
• Horsepower: 0.333 HP
• Electrical: 120/240 V, Single Phase

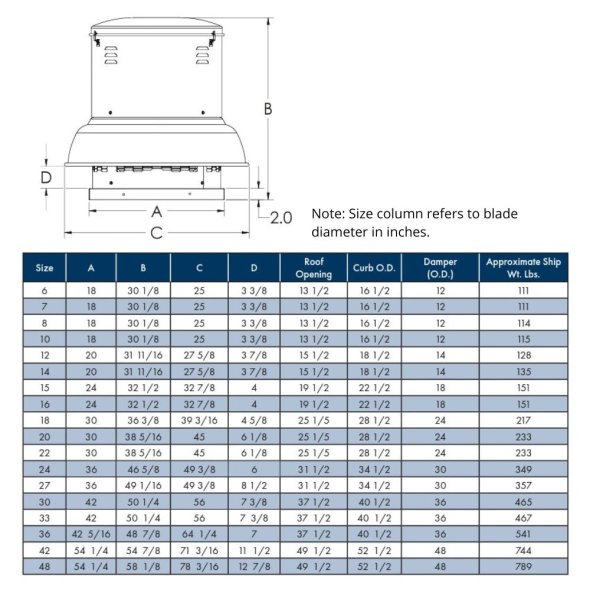

• Curb Cap Size: 24 x 24"
• Certification: HVI
• Height: 41.75"
• Width: 39.50"
• Depth: 39.50"
• Maximum CFM: 2994
• Additional Information: Fits a 22 1/2 x 22 1/2 O.D. Curb
• SKU: SDB16PH1S
• Energy Star: Yes
• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 2851
• Country of Origin: USA
• Hertz: 60
• Phase: 1 Phase
• RPM: 2851
• Speed: 1 Speed
• Voltage: 120
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 16
• Max. BHP: 0.36
• Max. Static Pressure WG (in.): 5/8
• Sones Level: 11.1 @ 1/4 SP
• CFM @ Zero Static Pressure: 2851
• Roof Opening (in.): 19.5
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
