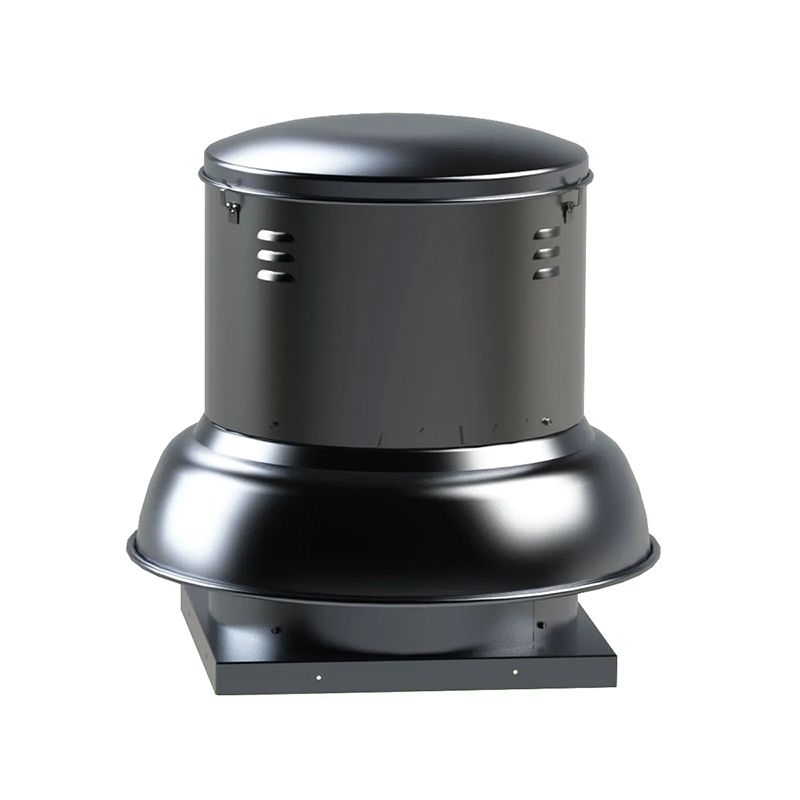

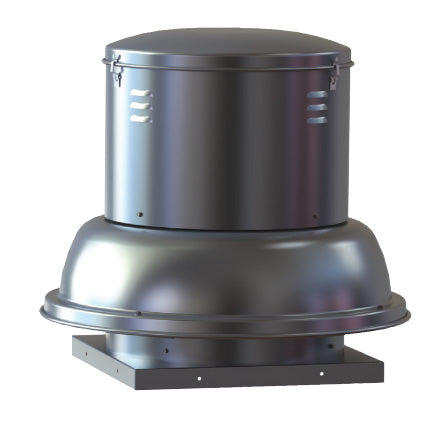

Soler & Palau SDB16MH1S Belt Drive Centrifugal Roof Exhauster 1/4 hp

Product Description

The SOLER & PALAU SDB16MH1S belt drive centrifugal roof exhauster is designed to exhaust air in high static pressure applications. It features an attractive spun aluminum exterior and a curved, non-overloading backward inclined wheel for efficiency. Belt drives permit easy performance adjustments when needed, and its roof mounting allows location near the area to be ventilated.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

Ideal for commercial, industrial, and institutional environments, this exhauster offers quiet operation and efficient ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB16MH1S
• Country of Origin: USA

Technical Specifications

• MPN: SDB16MH1S
• Brand/Manufacturer: S&P
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 2709
• Motor RPM: 900
• Horsepower: 0.25 HP
• Electrical: 120 / 240 V | Single Phase

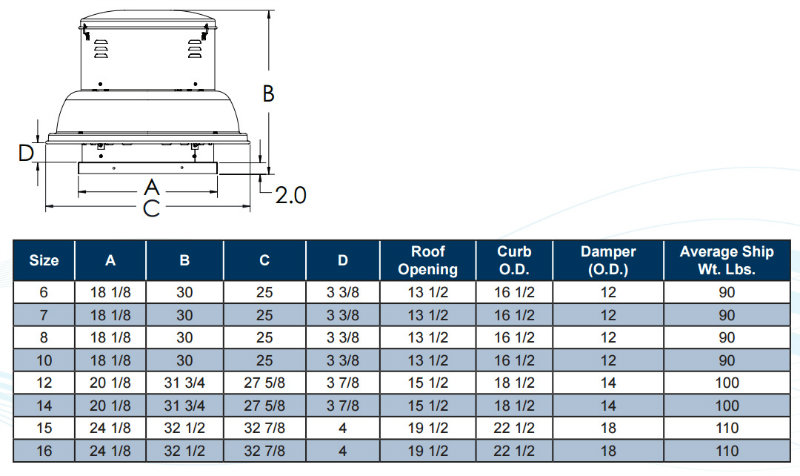

• Curb Cap Size: 24 x 24"
• Certification: HVI
• Height: 41.75"
• Width: 39.5"
• Depth: 39.5"
• Blade Diameter: 16"
• Blade Material: Aluminum
• CFM: 2566
• Hertz: 60
• Phase: 1 Phase
• RPM: 2566
• Speed: 1 Speed
• Voltage: 120
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 16
• Max. BHP: 0.26
• Max. Static Pressure WG (in.): 1/2
• Sones Level: 9.1 @ 1/4 SP
• CFM @ Zero Static Pressure: 2566
• Roof Opening (in.): 19.5
• Net Weight (lbs.): 110
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
