Soler & Palau SDB15SH1S Belt Drive Centrifugal Roof Exhauster 1 hp

Product Description

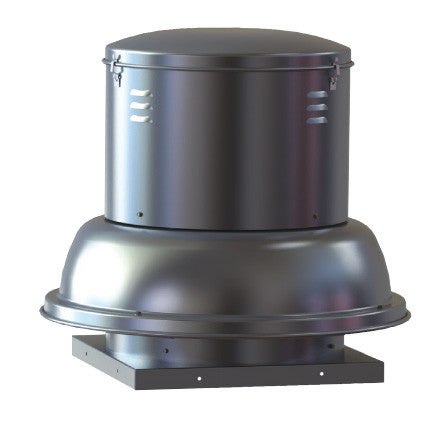

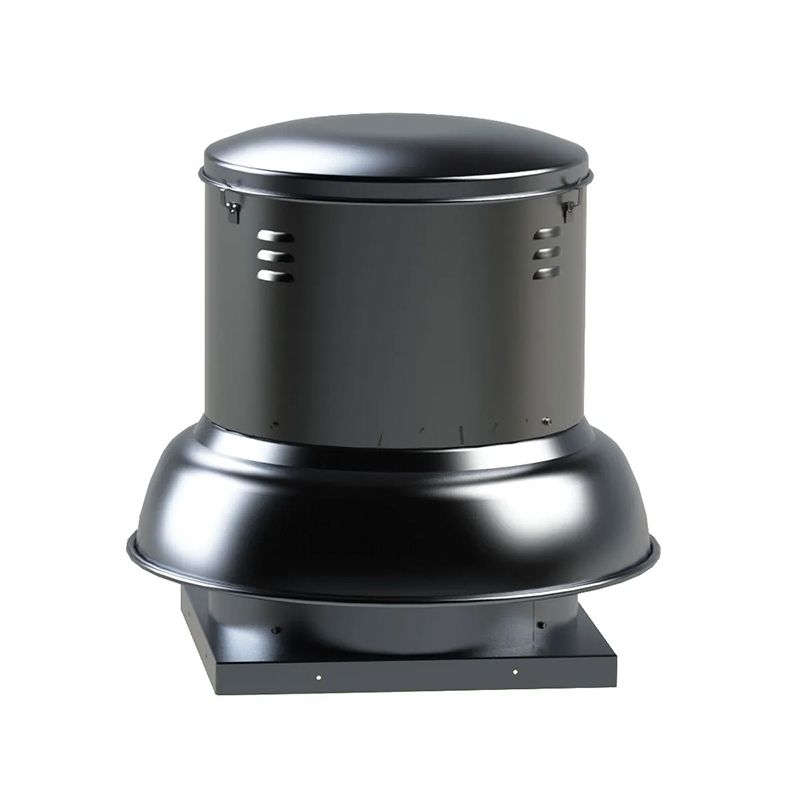

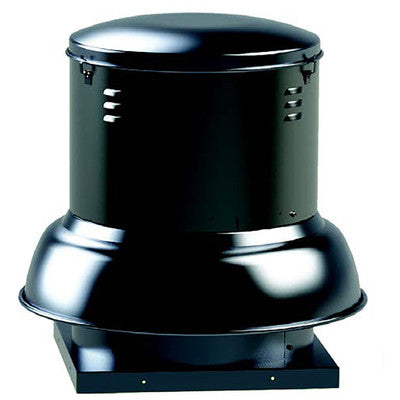

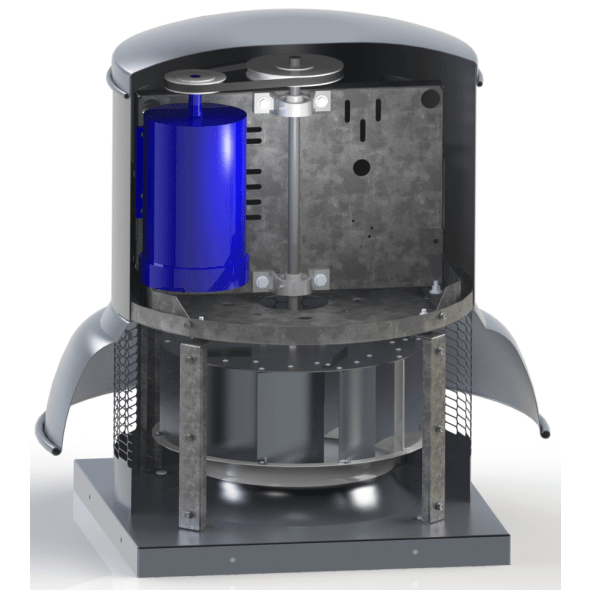

The Soler & Palau SDB15SH1S is a belt drive centrifugal downblast roof exhauster. It exhausts air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g. Features an attractive spun aluminum exterior and curved non-overloading backward inclined wheel for efficiency at higher static pressures. Belt drives permit easy performance adjustments when needed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

The SDB15SH1S is ideal for exhausting relatively clean air from commercial, industrial, and institutional environments. Its roof mounting allows short duct runs and efficient operation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB15SH1S
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler & Palau
• Model / MPN: SDB15SH1S
• Maximum CFM: 3724
• Motor RPM: 1600
• Horsepower: 1
• Electrical: 120 / 240 V | Single Phase

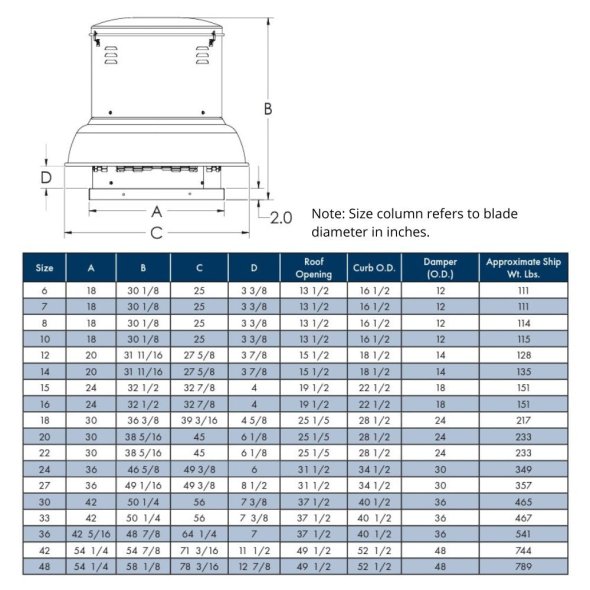

• Curb Cap Size: 24 x 24"
• Certification: HVI
• Height: 41.75"
• Width: 39.5"
• Depth: 39.5"
• Additional Information: Fits a 22 1/2 x 22 1/2 O.D. Curb
• Blower Motor: Single Phase
• Drive Type: Belt
• Blade Diameter: 15"
• Blade Material: Aluminum
• Country of Origin: USA
• Made in the USA: Yes
• Phase: 1 Phase
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 15
• Max. BHP: 1.07
• Max. Static Pressure WG (in.): 1-1/2
• Sones Level: 22 @ 1/4 SP
• CFM @ Zero Static Pressure: 3724
• Roof Opening (in.): 19.5
• Net Weight (lbs.): 110
• RPM: 3724
• Speed: 1 Speed
• Voltage: 120
