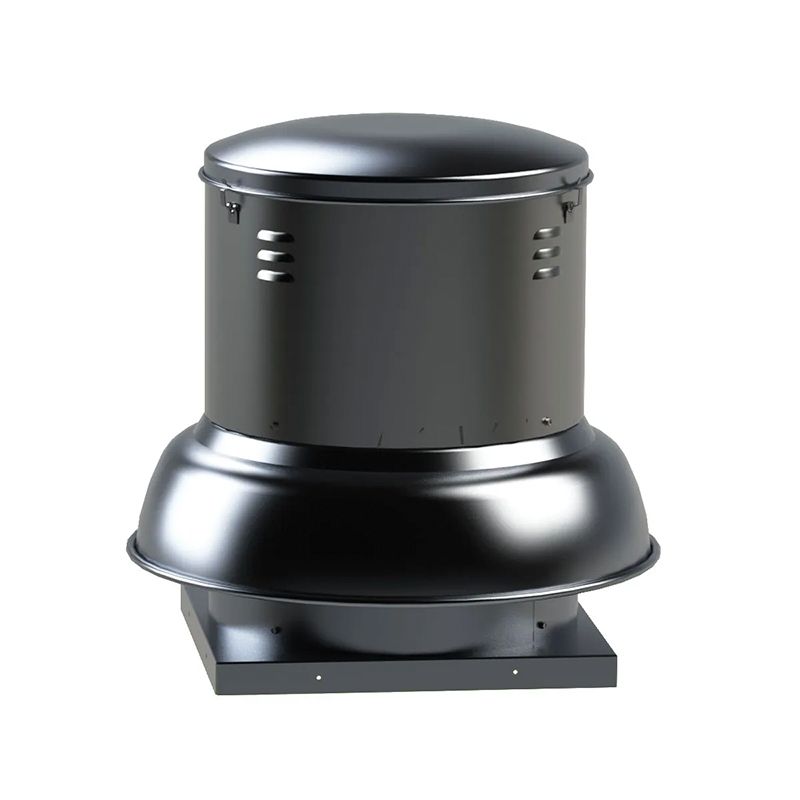

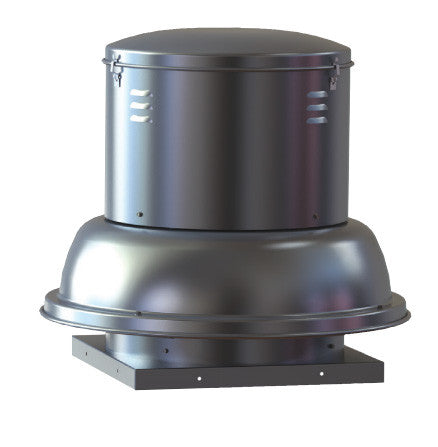

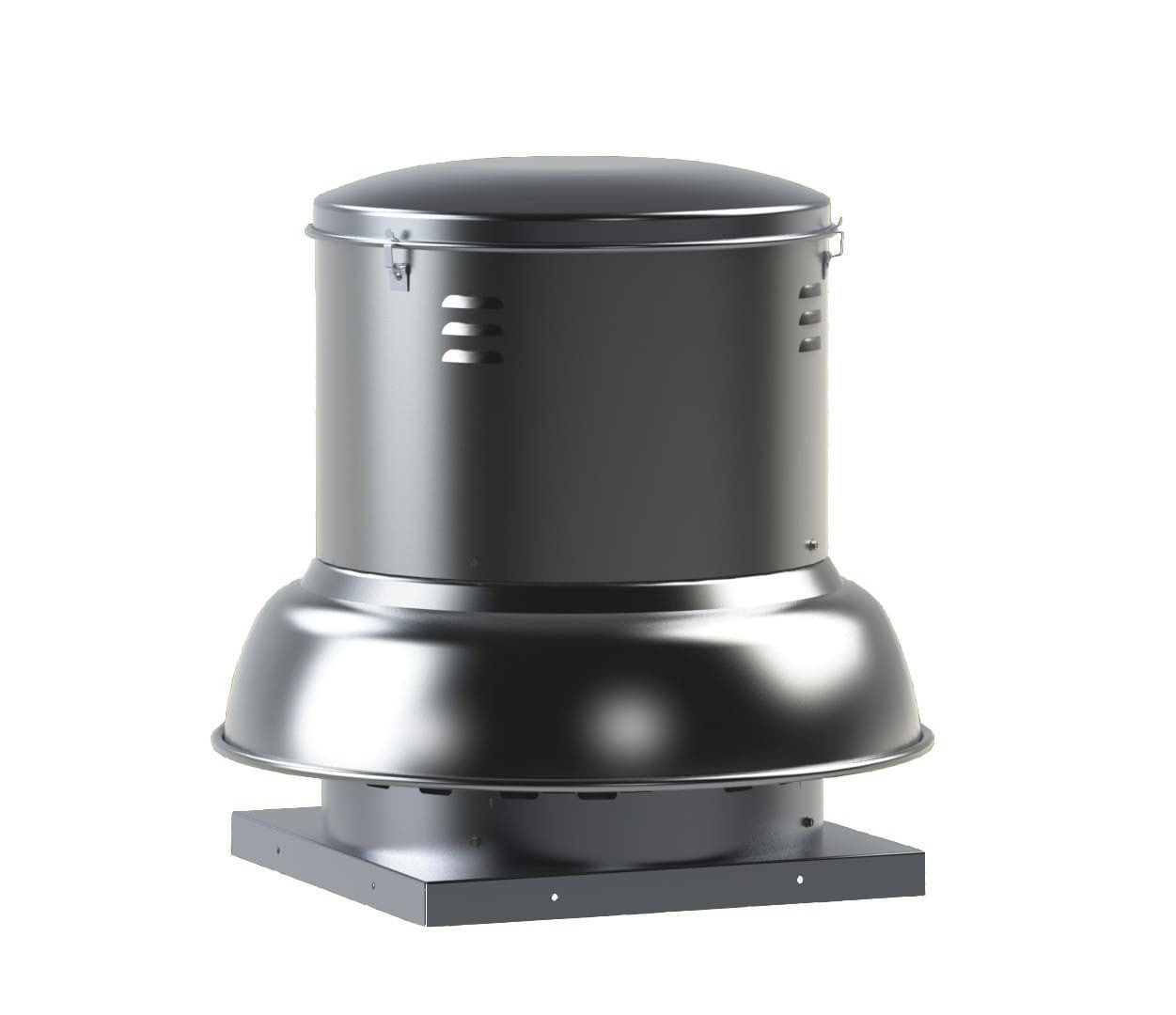

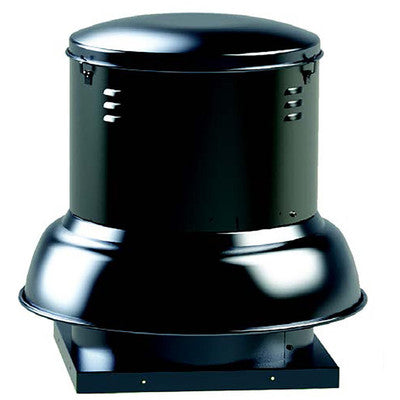

Soler & Palau SDB15QH1S Belt Drive Centrifugal Roof Exhauster 1/2 hp

Product Description

The Soler & Palau SDB15QH1S is a belt drive centrifugal downblast roof exhauster. It is designed to exhaust air in high static pressure applications. Features an attractive spun aluminum exterior and a curved non-overloading backward inclined wheel for efficiency at higher static pressures. AMCA Air and Sound Licensed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This roof exhauster is well-suited for commercial, industrial, and institutional environments, offering quiet operation and efficient ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB15QH1S
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• MPN: SDB15QH1S
• Product Type: Commercial Exhauster
• Manufacturer: Soler & Palau
• Product Group: BISS
• Number of Items: 1.0

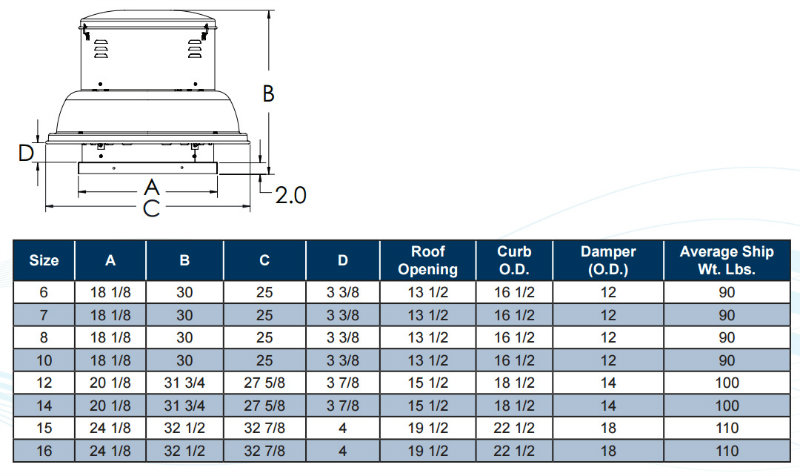

• Additional Information: Fits a 22 1/2 x 22 1/2 O.D. Curb
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 3026
• Motor RPM: 1250
• Horsepower: 1/2
• Electrical: 120 / 240 V | Single Phase
• Curb Cap Size: 24 x 24"
• Certification: HVI
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 15
• Max. BHP: 0.51
• Max. Static Pressure WG (in.): 7/8
• Sones Level: 14.4 @ 1/4 SP
• CFM @ Zero Static Pressure: 2909
• Roof Opening (in.): 19.5
• Net Weight (lbs.): 110
• Voltage: 110-120V
• Blade Diameter: 15.0"
• Blade Material: Aluminum
• Hertz: 60
• Motor Type: ODP
• Phase: 1 Phase
• RPM: 1250
