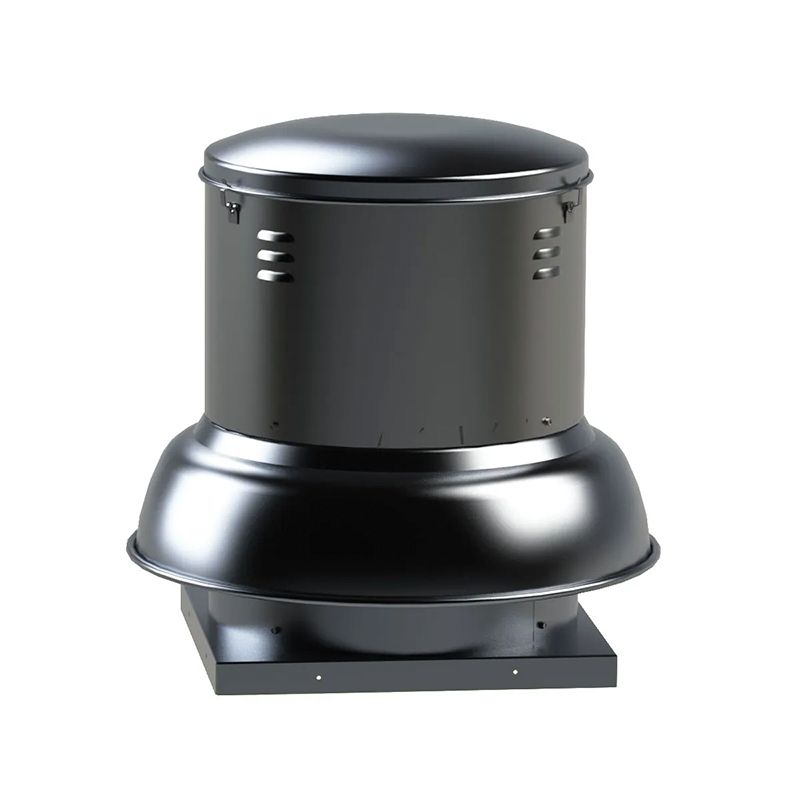

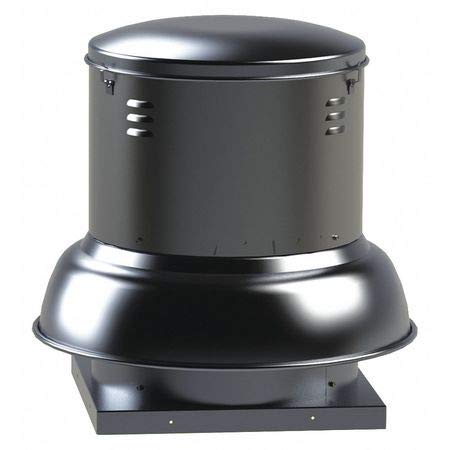

Soler & Palau SDB15MH1S Belt Drive Centrifugal Roof Exhauster 1/4 hp

Product Description

The Soler & Palau SDB15MH1S is a belt drive centrifugal downblast roof exhauster. It is designed to exhaust air up to 4135 CFM in high static pressure applications. The attractive spun aluminum exterior adds to its appeal. Belt drives permit easy performance adjustments when needed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This roof exhauster is ideal for commercial, industrial, and institutional environments.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB15MH1S
• Country of Origin: United States

Technical Specifications

• MPN: SDB15MH1S
• Drive Type: Belt
• Maximum CFM: 2327
• Motor RPM: 1000
• Horsepower: 0.25 HP
• Electrical: 120 / 240 V | Single Phase
• Curb Cap Size: 24 x 24"
• Certification: HVI
• Height: 41.75"
• Width: 39.5"
• Depth: 39.5"
• Blade Diameter: 15"
• Blade Material: Aluminum
• Hertz: 60
• Phase: 1 Phase
• Product Weight: 115 lbs
• RPM: 2327
• Speed: 1 Speed
• Voltage: 120
• Country of Origin: USA
