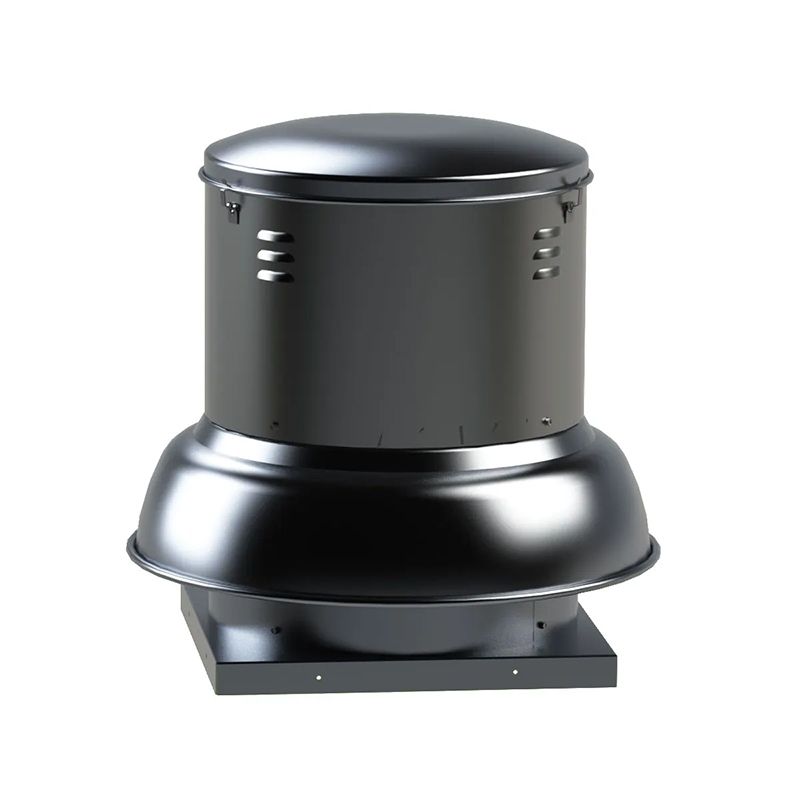

Soler & Palau SDB14SH1S Belt Drive Centrifugal Roof Exhauster 1 hp

Product Description

The Soler & Palau SDB14SH1S is a belt drive centrifugal down blast roof exhauster. It is designed to exhaust air in high static pressure applications. The belt drive results in lower operating RPM and sound levels. It is well suited to applications where quiet operation is important.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This roof exhauster is ideal for commercial, industrial, and institutional environments. It features a curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB14SH1S
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler & Palau
• Model / MPN: SDB14SH1S
• MPN: SDB14SH1S
• Product Type: Roof Exhauster
• Brand/Manufacturer: S&P

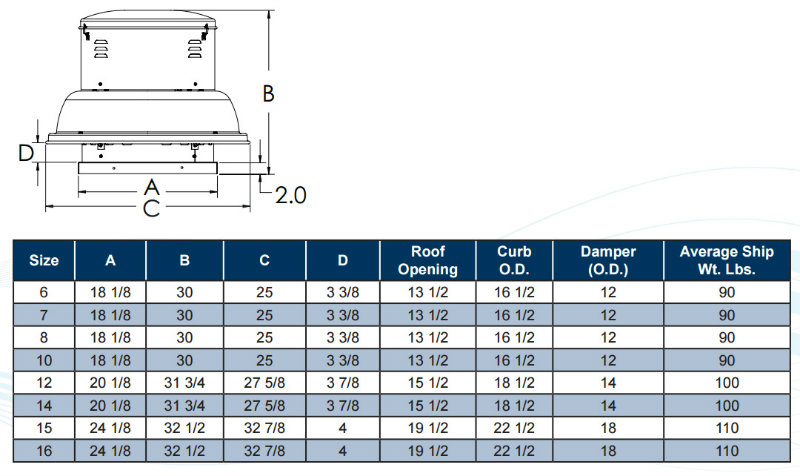

• Additional Information: Fits a 18 1/2 x 18 1/2 O.D. Curb
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 3525
• Motor RPM: 1750
• Horsepower: 1 HP - 1.5 HP
• Energy Star: Yes
• Electrical: 120/240 V, Single Phase
• Curb Cap Size: 20 x 20"
• Certification: HVI
• Blade Diameter: 14"
• Blade Material: Aluminum
• Country of Origin: USA
• Harmonized System Code: 841459
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 3525
• Speed: 1 Speed
• Voltage: 120
• Item #: SDB14SH1S
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 14
• Max. BHP: 1.08
• Max. Static Pressure WG (in.): 1-1/2
• Sones Level: 23 @ 1/4 SP
• CFM @ Zero Static Pressure: 3525
• Roof Opening (in.): 15.5
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
