Soler & Palau SDB14RH1S Belt Drive Centrifugal Roof Exhauster 0.75 HP

Product Description

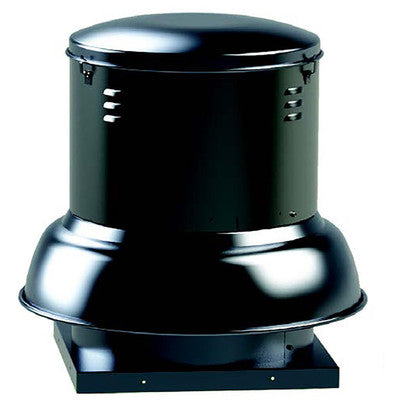

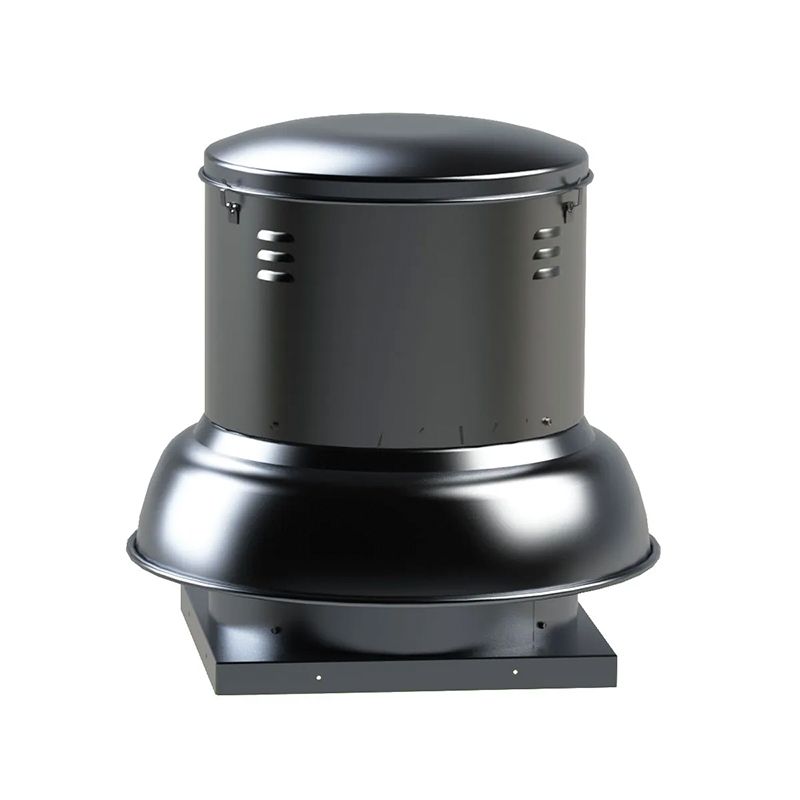

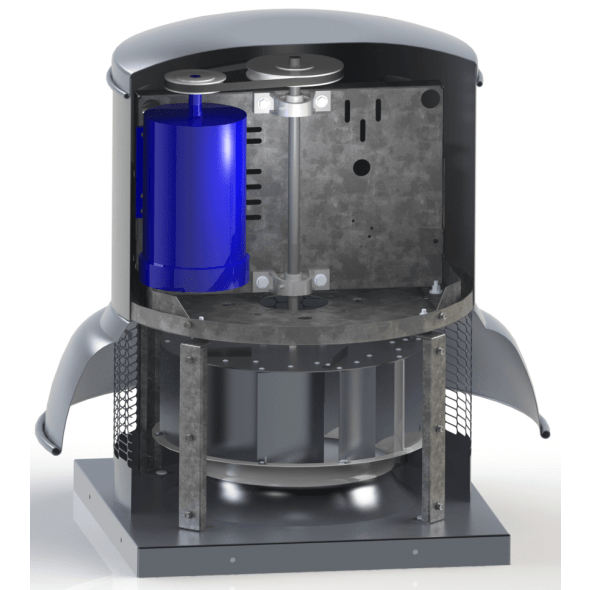

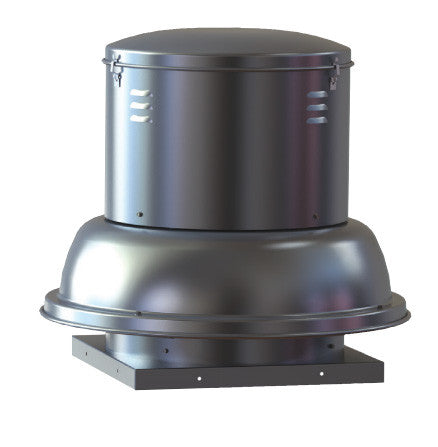

The Soler & Palau SDB14RH1S belt drive centrifugal roof exhauster is designed to exhaust air. It features an attractive spun aluminum exterior and belt drives that permit easy performance adjustments. The curved non-overloading backward inclined wheel ensures efficiency at higher static pressures. AMCA Air and Sound Licensed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This roof exhauster is ideal for commercial, industrial, and institutional environments, offering efficient and quiet operation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB14RH1S
• Country of Origin: USA

Technical Specifications

• MPN: SDB14RH1S
• Brand/Manufacturer: S&P
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 3122
• Motor RPM: 1550
• Horsepower: 0.75
• Electrical: 120/240 V, Single Phase
• Curb Cap Size: 20 x 20"
• Certification: HVI
• Height: 40.75"
• Width: 35.5"
• Depth: 35.5"
• Blade Diameter: 14"
• Blade Material: Aluminum
• Country of Origin: USA
• Harmonized System Code: 841459
• Phase: 1 Phase
• RPM: 3122
• Speed: 1 Speed
• Voltage: 120 / 240
• Wheel Size (in.): 14
• Max. BHP: 0.75
• Max. Static Pressure WG (in.): 1-1/4
• Sones Level: 19 @ 1/4 SP
• CFM @ Zero Static Pressure: 3122
• Roof Opening (in.): 15.5
• Net Weight (lbs.): 100
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
