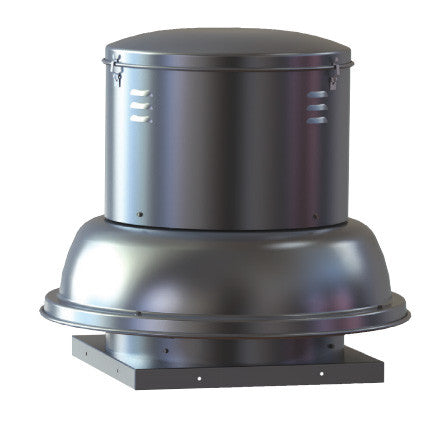

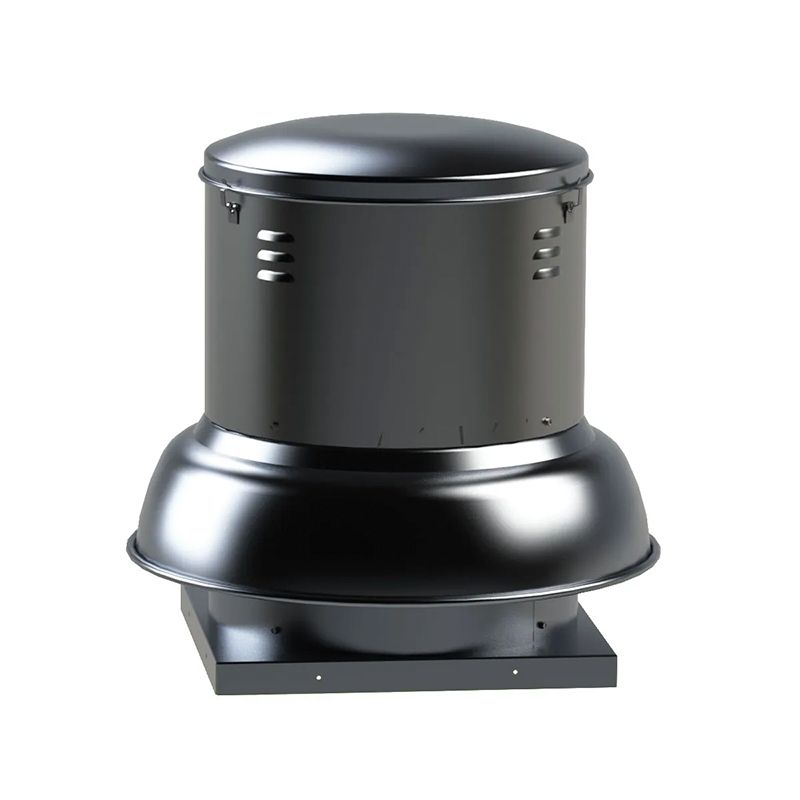

Soler & Palau SDB14QH1S Belt Drive Centrifugal Roof Exhauster 0.5 HP

Product Description

The Soler & Palau SDB14QH1S belt drive centrifugal roof exhauster is designed to exhaust air in high static pressure applications. Features an attractive spun aluminum exterior and a curved, non-overloading backward inclined wheel for efficiency at higher static pressures. Belt drives permit easy performance adjustments when needed. It is well suited for commercial, industrial, and institutional environments.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

The SDB14QH1S is ideal for exhausting relatively clean air from commercial, industrial, and institutional environments. Its belt drive design ensures quiet operation and easy performance adjustments.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB14QH1S
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler & Palau
• Model / MPN: SDB14QH1S
• MPN: SDB14QH1S
• Product Type: Commercial Exhauster
• Additional Information: Fits a 18 1/2 x 18 1/2 O.D. Curb
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 2921
• Motor RPM: 1400
• Horsepower: 0.5 HP - 0.75 HP
• Electrical: 120/240 V, Single Phase
• Curb Cap Size: 20 x 20"
• Certification: HVI
• Height: 40.75"
• Width: 35.5"
• Depth: 35.5"
• Item #: SDB14QH1S
• Blade Diameter: 14"
• Blade Material: Aluminum
• CFM: 2820
• Country of Origin: USA
• Harmonized System Code: 841459
• Hertz: 60
• Phase: 1 Phase
• RPM: 1400
• Speed: 1 Speed
• Voltage: 110-120V
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 14
• Max. BHP: 0.55
• Max. Static Pressure WG (in.): 1
• Sones Level: 15.9 @ 1/4 SP
• CFM @ Zero Static Pressure: 2820
• Roof Opening (in.): 15.5
