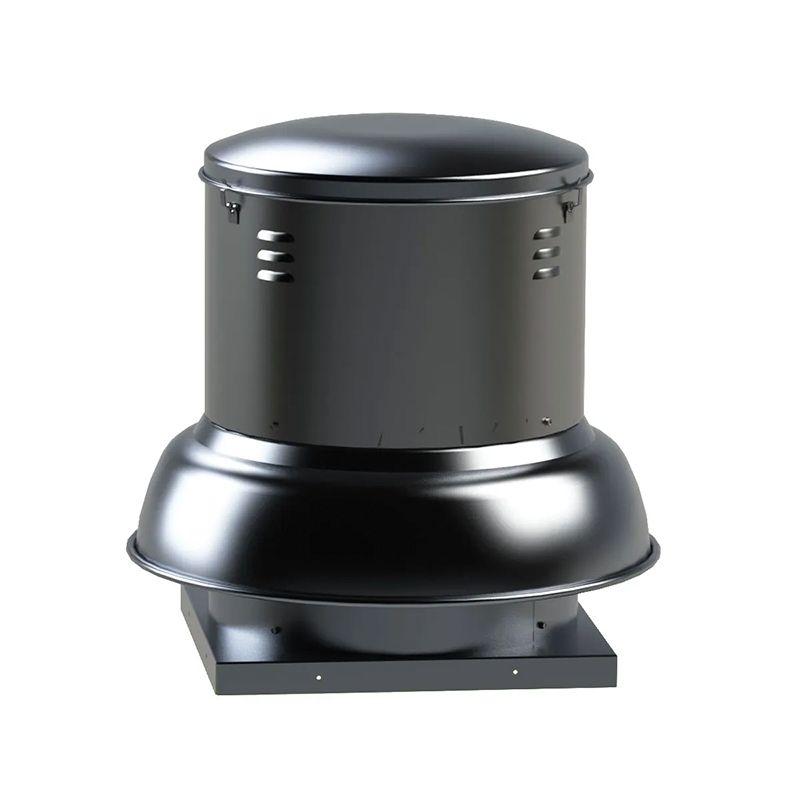

Soler & Palau SDB14PH1S Belt Drive Centrifugal Roof Exhauster 1/3 hp

Product Description

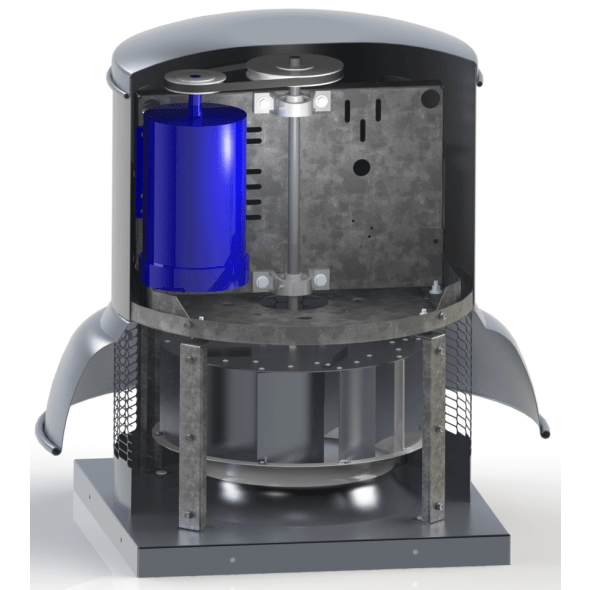

The Soler & Palau SDB14PH1S is a belt drive centrifugal downblast roof exhauster. It is designed to exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2"). Features an attractive spun aluminum exterior and a curved non-overloading backward inclined wheel for efficiency at higher static pressures.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2").
• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.

Product Highlights

Ideal for commercial, industrial, and institutional environments, this roof-mounted exhauster allows for short duct runs and efficient operation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB14PH1S
• Country of Origin: USA

Technical Specifications

• MPN: SDB14PH1S
• Manufacturer: Soler & Palau
• Brand: Soler & Palau
• Product Group: BISS
• SKU: SDB14PH1S
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 2518
• Motor RPM: 1200
• Horsepower: 0.333 HP
• Energy Star: Yes
• Electrical: 120/240 V, Single Phase
• Curb Cap Size: 20 x 20"
• Certification: HVI
• Blade Diameter: 14"
• Blade Material: Aluminum
• CFM: 2417
• Country of Origin: USA
• Harmonized System Code: 841459
• Hertz: 60
• Phase: 1 Phase
• RPM: 2417
• Speed: 1 Speed
• Voltage: 120
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 14
• Max. BHP: 0.5
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 11.8 @ 1/4 SP
• CFM @ Zero Static Pressure: 2417
• Roof Opening (in.): 15.5
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
