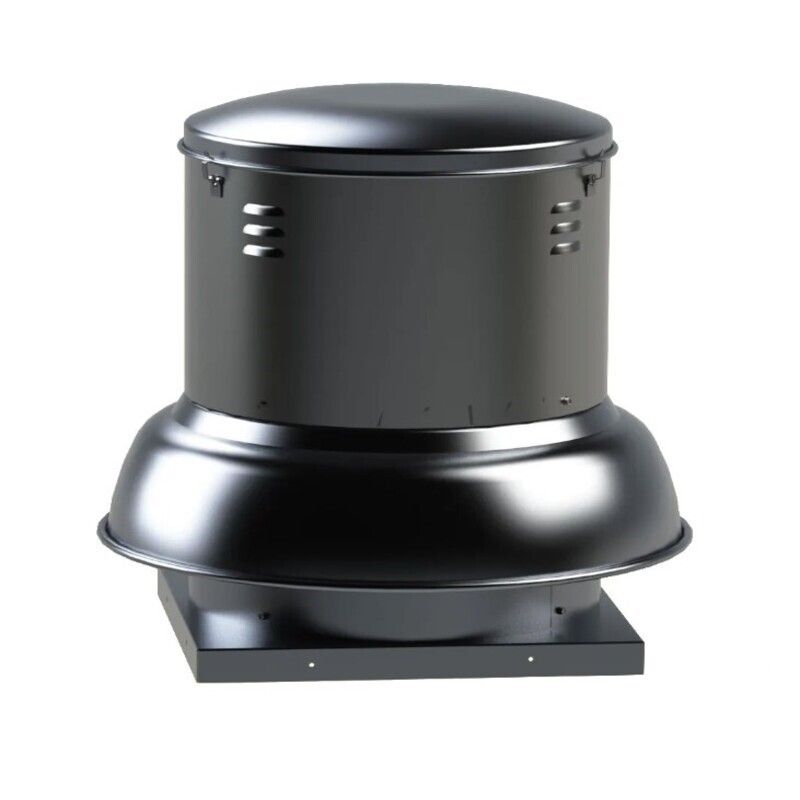

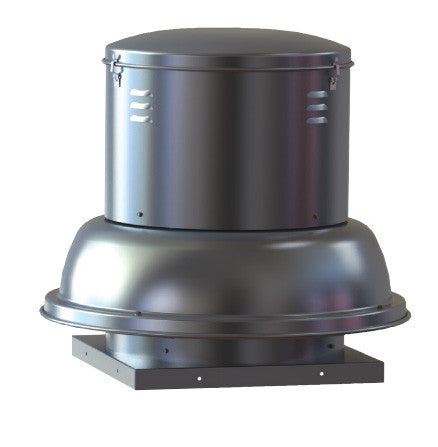

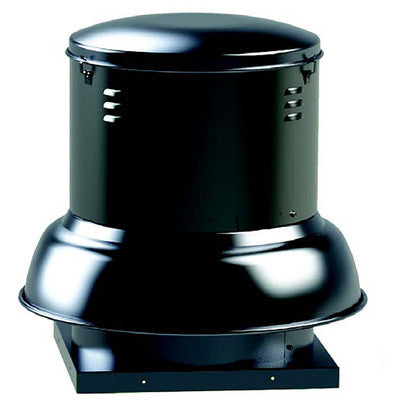

Soler & Palau SDB14MH1S SDB 14 Belt Drive Centrifugal Roof Exhauster 1/4 hp

Product Description

The Soler & Palau SDB14MH1S is a belt drive centrifugal downblast roof exhauster. It features an attractive spun aluminum exterior and belt drives that permit easy performance adjustments. The curved non-overloading backward inclined wheel ensures efficiency at higher static pressures. This unit is AMCA Air and Sound Licensed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

This centrifugal roof exhauster is ideal for commercial, industrial, and institutional environments, offering quiet operation and efficient ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB14MH1S

Technical Specifications

• Brand: Soler & Palau
• MPN: SDB14MH1S
• Product Type: Commercial Exhauster
• Manufacturer: Soler & Palau
• Product Group: BISS
• Model / MPN: SDB14MH1S
• Number of Items: 1.0
• Brand/Manufacturer: S&P
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 2316
• Motor RPM: 1100
• Horsepower: 1/4
• Energy Star: Yes
• Electrical: 120/240 V, Single Phase
• Curb Cap Size: 20 x 20"
• Certification: HVI
• Height: 40.75"
• Width: 35.5"
• Depth: 35.5"
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 14
• Max. BHP: 0.27
• Max. Static Pressure WG (in.): 5/8
• Sones Level: 10.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 2216
• Roof Opening (in.): 15.5
• Net Weight (lbs.): 100
• Voltage: 110-120V
• RPMs: 1100
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
