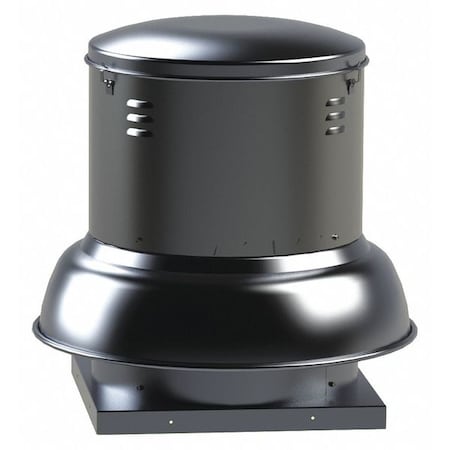

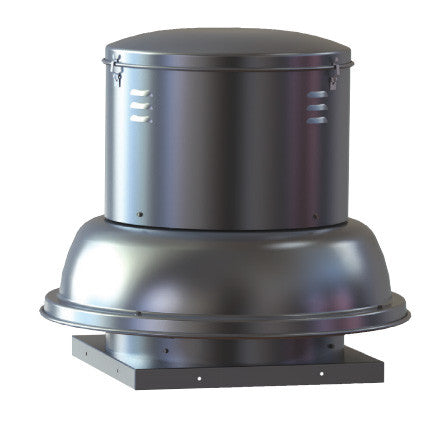

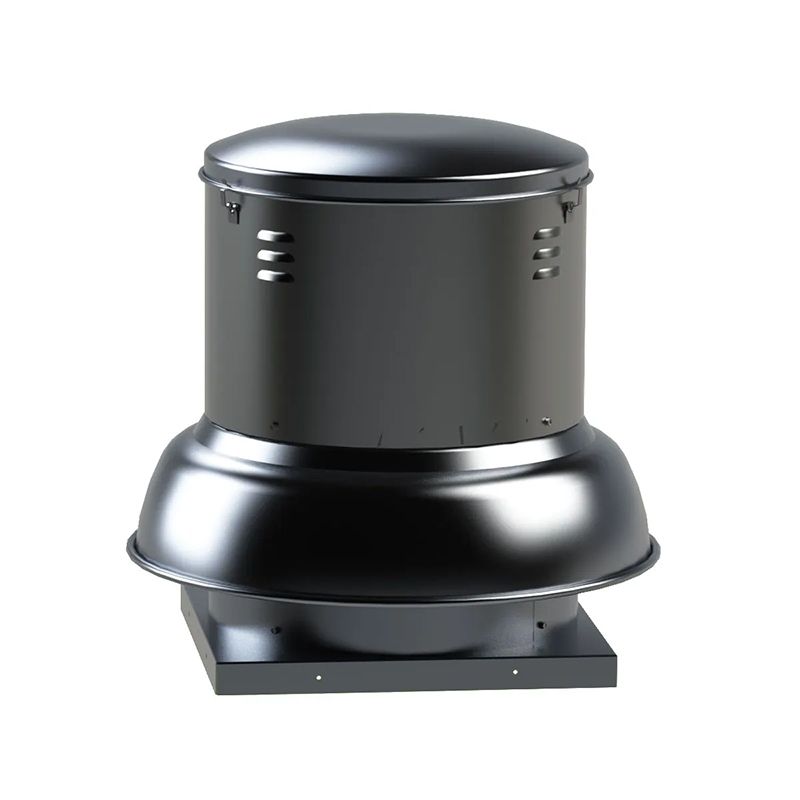

Soler & Palau SDB12PH1S Downblast Exhaust Fan 1/3HP 1550 RPM

Product Description

The SOLER & PALAU SDB12PH1S downblast exhaust fan is designed for roof mounting and removes relatively clean air from commercial facilities. The belt drive results in lower sound levels and RPMs. It features a non-overloading backward inclined wheel for higher static pressure capabilities, making it suitable for ducted or non-ducted applications.

• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed
• AMCA Air and Sound Licensed

Product Highlights

This downblast exhaust fan is ideal for commercial, industrial, and institutional environments.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB12PH1S
• Country of Origin: United States

Technical Specifications

• MPN: SDB12PH1S
• Category: HVAC and Refrigeration -- Roof Ventilators
• Item [Specifications]: Downblast Exhaust Fan
• Country of Origin (subject to change) [Specifications]: United States
• SKU: SDB12PH1S
• Brand/Manufacturer: S&P
• Additional Information: Fits a 18 1/2 x 18 1/2 O.D. Curb
• Blower Motor: Single Phase
• Drive Type: Belt
• Maximum CFM: 1760
• Motor RPM: 1550
• Horsepower: .333 HP
• Electrical: 120/240 V, Single Phase
• Curb Cap Size: 20 x 20"
• Certification: HVI
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 12
• Horsepower (hp): 1/3
• Max. BHP: 0.34
• Max. Static Pressure WG (in.): 1
• Sones Level: 13.2 @ 1/4 SP
• CFM @ Zero Static Pressure: 1705
• Roof Opening (in.): 15.5
• Voltage: 110-120V
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• RPMs: 1550
• Net Weight (lbs.): 100
• Height: 40.75"
• Width: 35.5"
• Depth: 35.5"
