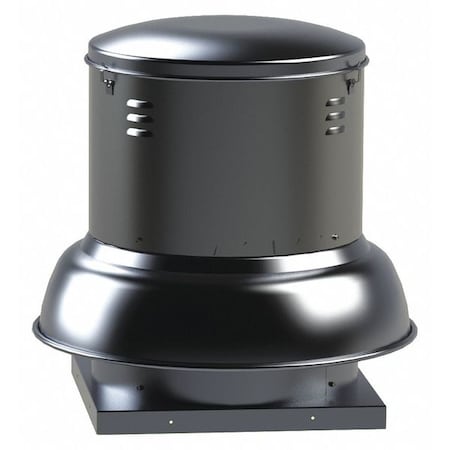

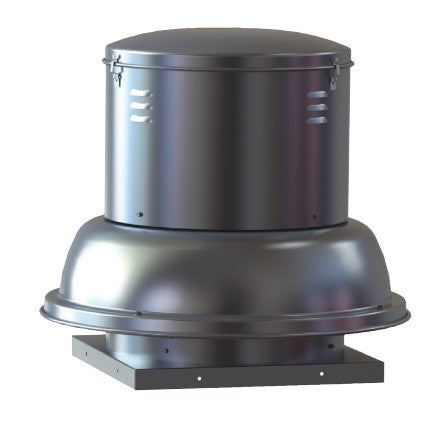

Soler & Palau SDB10ML1S Downblast Belt Drive Centrifugal Roof Exhauster 1/4 hp

Product Description

The Soler & Palau SDB10ML1S is a downblast, roof-mounted centrifugal exhaust fan with a belt drive motor. It features an attractive spun aluminum exterior and a curved non-overloading backward inclined wheel for efficiency. This fan is AMCA Air and Sound Licensed and cULus 705 Listed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures

Product Highlights

This centrifugal exhaust fan is designed for commercial, industrial, and institutional environments, offering quiet operation and efficient ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB10ML1S
• Country of Origin: United States

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler & Palau
• Model / MPN: SDB10ML1S
• MPN: SDB10ML1S
• Item [Specifications]: Downblast Exhaust Fan,1/4HP,1Ph,1450 rpm
• Item #: SDB10ML1S
• Blade Diameter: 10"
• Blade Material: Aluminum
• CFM: 1213
• Country of Origin: USA
• Drive Type: Belt
• Hertz: 60
• Horsepower: 0.25
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 1213
• Speed: 1 Speed
• Voltage: 110-120V
• MFR #: SDB10ML1S
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 10
• Max. BHP: 0.19
• RPMs: 1450
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 10.8 @ 1/4 SP
• CFM @ Zero Static Pressure: 1213
• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
