Soler & Palau SDB08PH1S Belt Drive Centrifugal Roof Exhauster 1/3 hp

Product Description

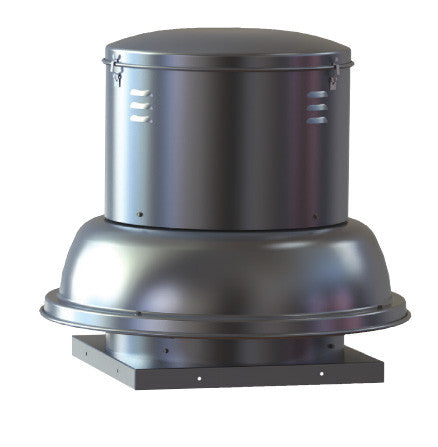

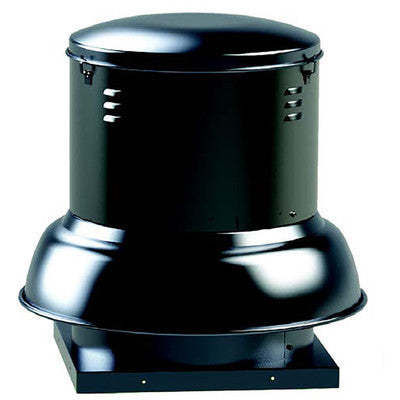

The Soler & Palau SDB08PH1S is a belt drive centrifugal roof exhauster designed to exhaust air up to 4135 CFM in high static pressure applications. It features an attractive spun aluminum exterior and belt drives that permit easy performance adjustments. The curved non-overloading backward inclined wheel ensures efficiency at higher static pressures. AMCA Air and Sound Licensed.

• Exhaust air up to 4135 CFM in high static pressure applications up to 1-1/2 w.g
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

The SDB08PH1S is ideal for commercial, industrial, and institutional environments. Its roof mounting allows for short duct runs and efficient operation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB08PH1S
• Country of Origin: USA

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler & Palau
• Model / MPN: SDB08PH1S
• MPN: SDB08PH1S
• Number of Items: 1.0
• Product Group: BISS
• Product Type: BEARINGS_AND_BUSHINGS
• Blade Diameter: 8"
• Blade Material: Aluminum
• CFM: 1132
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.33
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 1051
• Speed: 1 Speed
• Voltage: 120
• Item Number: SDB08PH1S
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 8
• Max. BHP: 0.33
• Max. Static Pressure WG (in.): 1
• Sones Level: 15.0 @ 1/4 SP
• CFM @ Zero Static Pressure: 1132
• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• MOTOR HP: 1/3
• Size: 8
• Exhaust/Supply: Exhaust
• Model: SDB
• Fan Type: Roof Centrifugal
• Frequency: 60
• DIM A: 18
• DIM B: 30-1/8
• DIM C: 25
• DIM D: 3-3/8
• ROOF OPENING: 13-1/2
• AVG SHIP WT.: 111
• SONES AT 1/4 WG: 15.0
• CFM @ 0 WG: 1132
• CFM @ 1/8 WG: 1085
• CFM @ 1/4 WG: 1043
• CFM @ 3/8 WG: 1000
• CFM @ 1/2 WG: 954
• CFM @ 5/8 WG: 905
• CFM @ 3/4 WG: 850
• CFM @ 7/8 WG: 787
• CFM @ 1 WG: 712
• CFM @ 1 1/4 WG: 341
• CFM @ 1 1/2 WG: None
• MOTOR TYPE: ODP
• Input Voltage: 110-120V
