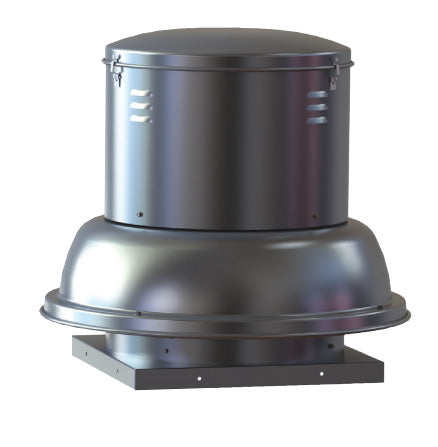

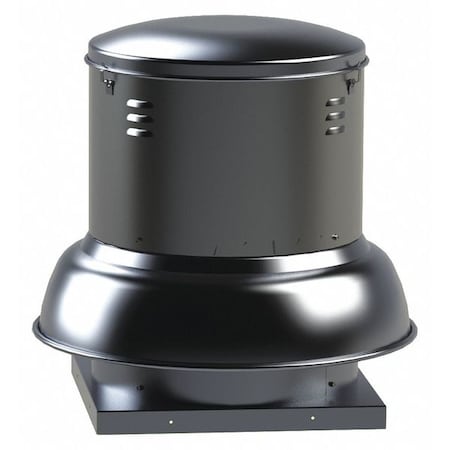

Soler & Palau SDB08MM1S Downblast Exhaust Fan 1/4HP 1750 rpm

Product Description

The SOLER & PALAU SDB08MM1S downblast belt drive centrifugal roof exhauster removes relatively clean air from commercial facilities. Belt drive results in lower sound levels and RPMs. It can be used in ducted or non-ducted applications because of the non-overloading backward inclined wheel and higher static pressure capabilities. It mounts on the roof near the area to be ventilated.

• Used to remove relatively clean air from many commercial facilities
• Belt drive results in lower sound levels and lower RPMs
• Can be used in ducted or non-ducted applications

Product Highlights

The SDB08MM1S features heavy duty construction and is rated for continuous use. The cover is easily removed for convenient access to the motor for maintenance. The housing includes a birdscreen and stainless steel exterior fasteners.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB08MM1S
• Country of Origin: United States

Technical Specifications

• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 8
• Horsepower (hp): 1/4
• RPMs: 1750
• Voltage: 110-120V
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Country of Origin: United States
• Max. BHP: 0.19
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 11.1 @ 1/4 SP
• CFM @ Zero Static Pressure: 493
• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
