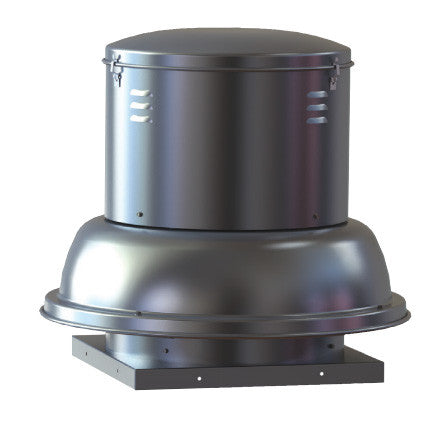

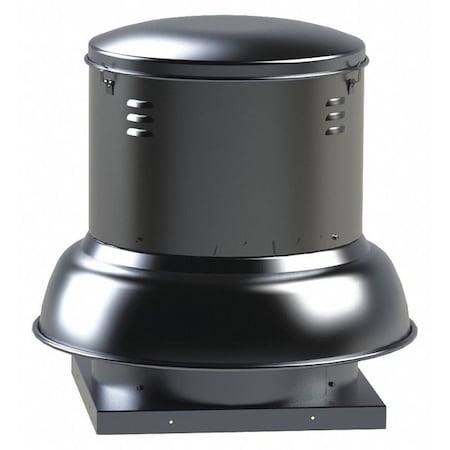

Soler & Palau SDB07MM1S Downblast Exhaust Fan 1/4HP 1800 rpm

Product Description

The SOLER & PALAU SDB07MM1S downblast belt drive centrifugal roof exhauster removes relatively clean air from commercial facilities. The belt drive results in lower sound levels and RPMs. Features heavy-duty construction and is rated for continuous use. The housing includes a birdscreen and stainless steel exterior fasteners.

• Used to remove relatively clean air from many commercial facilities.
• Belt drive results in lower sound levels and lower RPMs.
• Can be used in ducted or non-ducted applications.

Product Highlights

The SDB07MM1S is a 1/4HP, 1Ph, 1800 RPM downblast exhaust fan with a 7" wheel and 493 CFM.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB07MM1S
• Country of Origin: United States

Technical Specifications

• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 7
• Horsepower (hp): 1/4
• Max. BHP: 0.16
• RPMs: 1800
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 10.2 @ 1/4 SP
• CFM @ Zero Static Pressure: 493

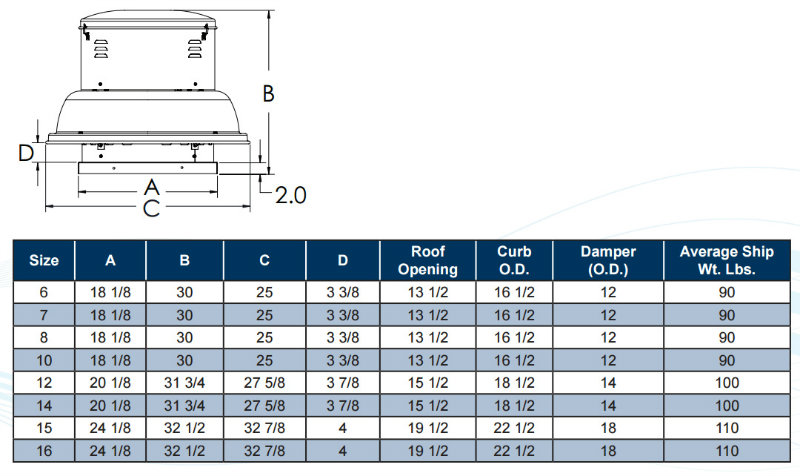

• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Voltage: 110-120V
• Country of Origin: United States
