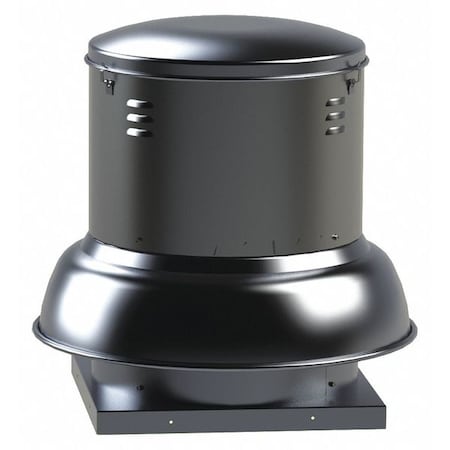

Soler & Palau SDB07ML1S Downblast Exhaust Fan 1/4HP 1Ph

Product Description

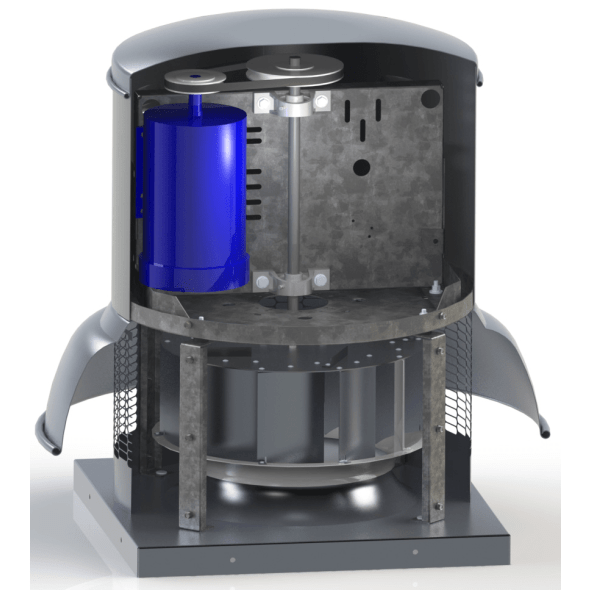

The SOLER & PALAU SDB07ML1S is a downblast, roof-mounted centrifugal exhaust fan with a belt drive motor. Designed to exhaust air in high static pressure applications. Its roof mounting permits location near the area to be ventilated, allowing short duct runs and more efficient operation.

• Temperature rating up to 170 degrees F
• Spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

Ideal for commercial, industrial, and institutional environments. Features a curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB07ML1S
• Country of Origin: United States

Technical Specifications

• Item #: SDB07ML1S
• Blade Diameter: 7"
• Blade Material: Aluminum
• CFM: 438
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.25
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 300
• Speed: 1 Speed
• Voltage: 120
