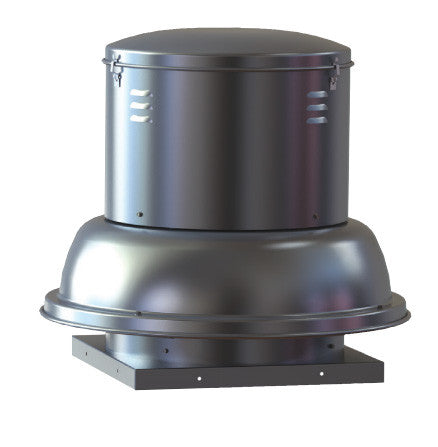

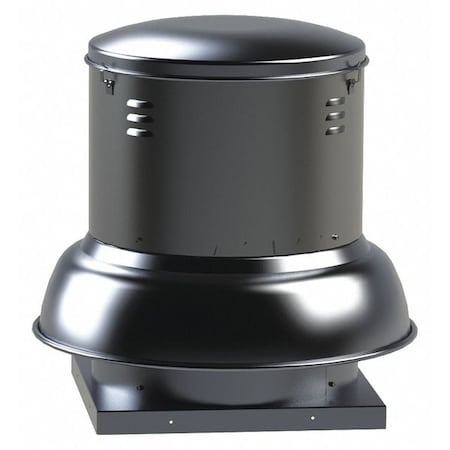

Soler & Palau SDB06MM1S Downblast Exhaust Fan 1/4Hp 1Ph 1800 Rpm

Product Description

The Soler & Palau SDB06MM1S downblast, roof-mounted centrifugal exhaust fan features a belt drive motor. It is designed to exhaust air from commercial, industrial, and institutional environments. The aluminum exterior provides an attractive appearance, and the belt drive results in lower operating RPM and sound levels.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures

Product Highlights

This downblast exhaust fan is ideal for removing relatively clean air from manufacturing plants, office buildings, schools, hospitals, and restaurants.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB06MM1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Downblast Exhaust Fan,1/4HP,1Ph,1800 rpm
• Country of Origin (subject to change) [Specifications]: United States
• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 6
• Horsepower (hp): 1/4
• Max. BHP: 0.15
• RPMs: 1800
• Max. Static Pressure WG (in.): 7/8
• Sones Level: 9.7 @ 1/4 SP
• CFM @ Zero Static Pressure: 337

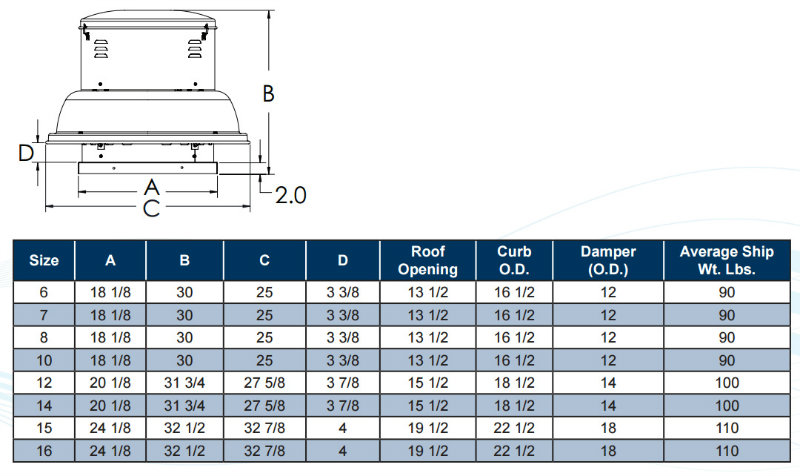

• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Voltage: 110-120V
• Application: Model SDB belt drive units are used for the exhaust of relatively clean air from a wide range of commercial, industrial and institutional environments such as manufacturing and assembly plants, office buildings, schools, hospitals, restaurants, athletic facilities and many others.
• Wheel: All aluminum backward inclined wheel. Nonoverloading for safe operation in ducted systems. Statically and dynamically balanced for smooth operation.
• Drives: Sized for minimum 150% of drive horsepower. Machined cast iron adjustable motor pulleys. Adjustable base for belt tensioning. Nonstatic oil resistant v-belts.
• Motors: Single speed open drip-proof are standard. All motors are rated for continuous duty. 182T and larger motors shipped umounted for field installation. Disconnect switch standard with single speed drip-proof motors.
• Housing: Heavy-gauge aluminum for extra strength with prepunched mounting hole. Neoprene isolators for reduction of vibration and sound. Cover easily removed for quick access to motor compartment. Water tight conduit tube for easy electrical connection from below roof. Aluminum birdscreen and disconnect are included on standard models. Stainless steel exterior fasteners.
