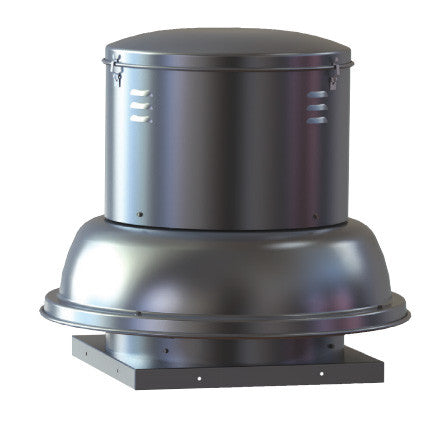

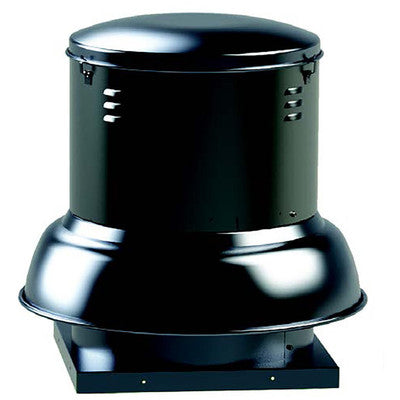

Soler & Palau SDB06ML1S SDB Centrifugal Roof Exhaust 6 inch 300 CFM Belt Drive

Product Description

The SOLER & PALAU SDB06ML1S belt drive fan exhausts air in high static pressure applications. Belt drive results in lower operating RPM and sound levels, making it well suited to applications where quiet operation is important. The backward inclined wheel makes this unit suitable for ducted or non-ducted applications. Its roof mounting permits location near the area to be ventilated.

• Temperature rating up to 170 degrees F
• Spun aluminum exterior
• Belt drives permit easy performance adjustments when needed

Product Highlights

Ideal for exhausting relatively clean air from commercial, industrial, and institutional environments. Features a curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB06ML1S
• Country of Origin: USA

Technical Specifications

• Item #: SDB06ML1S
• Blade Diameter: 6"
• Blade Material: Aluminum
• CFM: 300
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.25
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 300
• Speed: 1 Speed
• Voltage: 110-120V
• Installation: Roof
• Exhaust Type: Downblast
• Wheel Size (in.): 6
• Max. BHP: 0.11
• RPMs: 1600
• Max. Static Pressure WG (in.): 5/8
• Sones Level: 8.2 @ 1/4 SP
• CFM @ Zero Static Pressure: 300

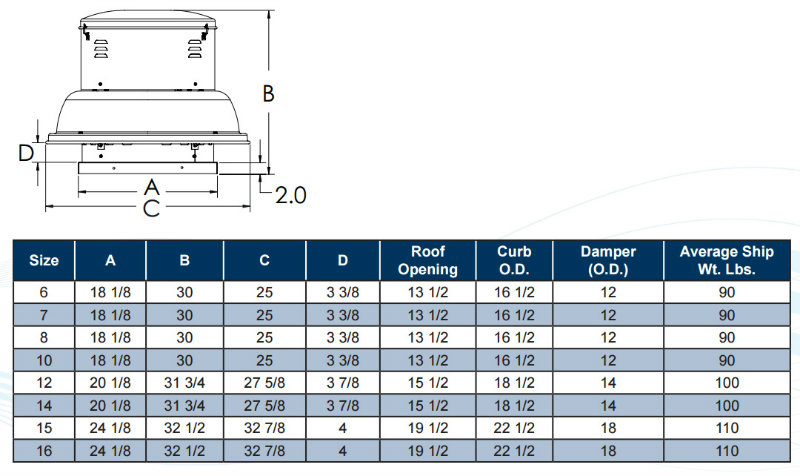

• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
