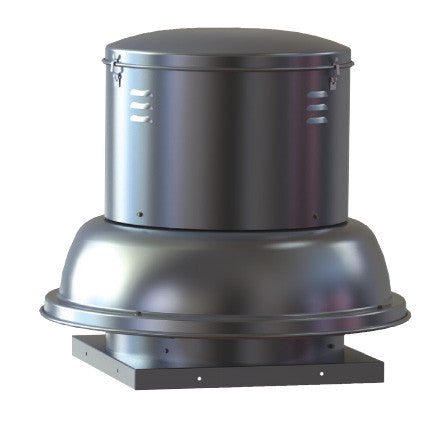

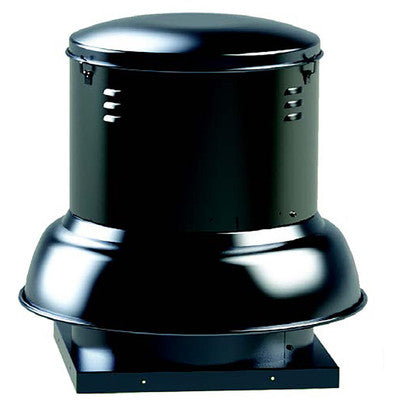

Soler & Palau SDB06MH1S Downblast Belt Drive Centrifugal Restaurant Roof Exhaust Fan 300CFM

Product Description

The Soler & Palau SDB06MH1S downblast belt drive centrifugal exhaust fan features an attractive spun aluminum exterior. Belt drives permit easy performance adjustments when needed. The curved non-overloading backward inclined wheel ensures efficiency at higher static pressures. AMCA Air and Sound Licensed and cULus 705 Listed.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures

Product Highlights

This centrifugal exhaust fan is designed for commercial, industrial, and institutional environments, offering quiet operation and efficient ventilation.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: SDB06MH1S

Technical Specifications

• Product Type: Commercial Exhauster
• Installation: Roof
• Exhaust Type: Downblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 6
• Horsepower (hp): 1/4
• Max. BHP: 0.21
• RPMs: 2000
• Max. Static Pressure WG (in.): 7/8
• Sones Level: 11.4 @ 1/4 SP
• CFM @ Zero Static Pressure: 375

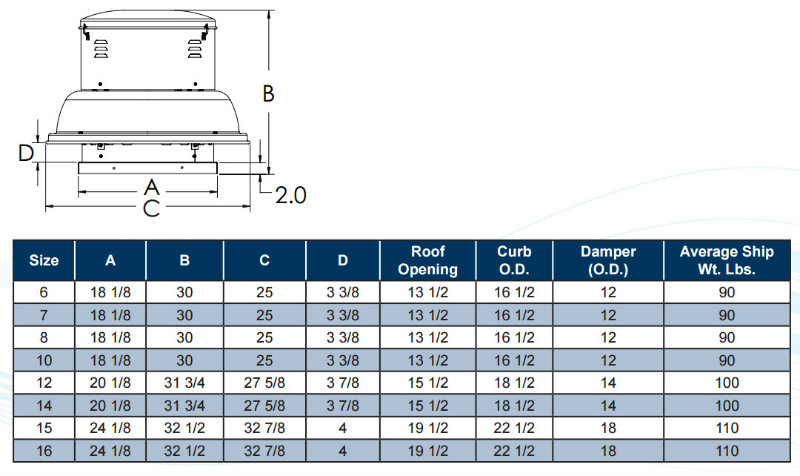

• Roof Opening (in.): 13.5
• Width (in.): 25
• Depth (in.): 25
• Height (in.): 30
• Net Weight (lbs.): 90
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Voltage: 110-120V
