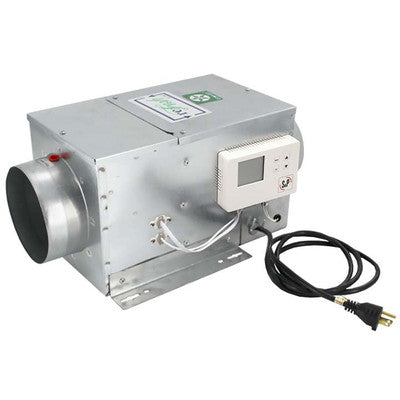

Soler & Palau RF8-120EC-ES24V refresh low profile outside air fan with ES24V 130cfm 120v/1ph no heat

Product Description

The SOLER & PALAU RF8-120EC-ES24V reFresh Low Profile Outside Air Fan is an all-in-one unit designed to introduce fresh outside air into residences, meeting ASHRAE 62.2 CFM requirements. This 120V/1Ph unit features an efficient EC motor and an ES24V control, offering set speeds at 40, 100, and 140 CFM. Its low-profile, galvanized housing and 6-inch round duct connectors facilitate easy installation and maintenance for improved indoor air quality.

• EC Motor and factory-installed ES24V control for efficient operation.
• Low profile, galvanized, 26 gauge, insulated housing with 6-inch round duct connectors.
• Internally mounted speed control with high, medium, and low set points (40, 100, 140 CFM).

Product Highlights

Efficient low-profile outside air fan with ES24V control, HVI Certified, and cULus 507 Listed for residential fresh air intake.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: RF8-120EC-ES24V

Technical Specifications

• Airflow (CFM): 130
• Input Voltage: 120V
• Phase: 1
• Heating Function: No
• Motor Type: EC
• Control Type: ES24V
• Housing Material: Galvanized Steel
• Housing Type: Low Profile, Insulated
• Duct Diameter: 6 Inch
• Filter Slot Width: 2 Inch
• Wheel Type: Backward Inclined
• Motor Features: 4 Pole, Permanently Lubricated, Thermally Protected
• Speed Control: Internal (High, Medium, Low)
• Power Cord Length: 6 Foot
• Certifications: HVI Certified, cULus 507 Listed
• Set Speeds (CFM): 40, 100, 140
