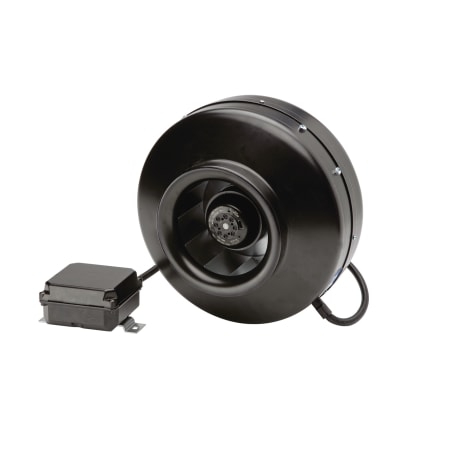

Soler & Palau PV-315X 12 942 CFM Power Vent Inline Centrifugal Turbo Duct Fan

Product Description

The Soler & Palau PV-315X is a powerful duct fan designed for inline connection with standard round ducting. This product delivers high airflow performance, suitable for ducted ventilation systems facing high static pressure. The motor of this fan is fully adaptable to speed control through voltage or frequency regulation.

• Factory matched wheel and external rotor motor
• Constructed with high-grade pressed galvanized steel
• Motor features self-lubricating precision ball bearings

Product Highlights

The PV-315X enhances airflow efficiency and is ideal for ventilation tasks requiring significant power. Its design ensures minimal vibration, leading to quieter operation.

Product Information

Standard Information

• Brand: Soler & Palau
• Type: Duct Fan

Technical Specifications

• Maximum Air Flow: 942 CFM
• Duct Connection: 12 inches
• Electrical Phase: 1
• Voltage: 115 Volts
• Power Consumption: 370 Watts
• Frequency: 60 Hz
• Height: 9 3/16 inches
• Width: 15 13/16 inches
• Weight: 20 pounds
• Warranty: 5 Years
