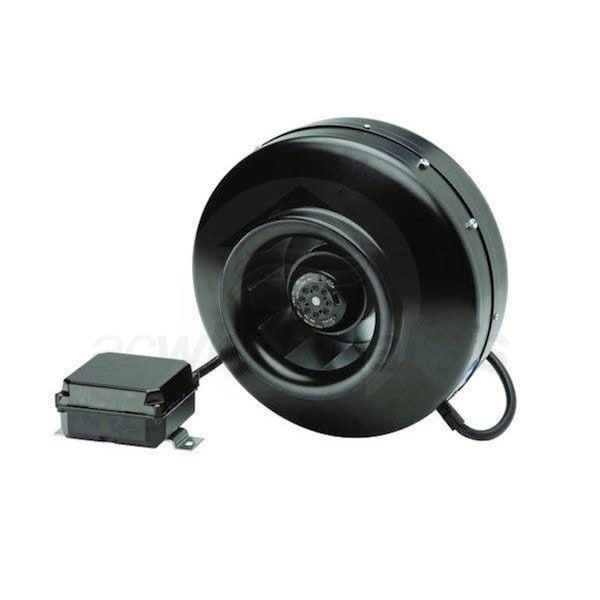

Soler & Palau PV-250X Power Vent Inline Centrifugal Turbo Duct Fan

Product Description

The Soler & Palau PV-250X is a powerful duct fan designed for direct connection in-line with standard diameter round ducting. This fan is effective in providing strong airflow performance, especially in systems that encounter high static pressure.

• Constructed from high-grade pressed galvanized steel with a durable baked enamel finish.
• Features an impeller matched with an external rotor motor, dynamically balanced to reduce vibration.
• Motor contains a permanent split capacitor and self-lubricating ball bearings for durability.

Product Highlights

This duct fan is suitable for residential and commercial ventilation systems. Its inline design allows for flexibility in installation and efficient operation.

Product Information

Standard Information

• Type: Duct Fan
• Mount Type: Inline

Technical Specifications

• MPN: PV-250X
• Voltage: 115 Volts
• Phase: 1
• Frequency: 60 Hz
• Maximum Air Flow: 618 CFM
• Duct Connection: 10 Inches
• Dimensions: 13 1/8 Inches (W) x 8 1/16 Inches (H)
• Weight: 16 Pounds
• Power Consumption: 214 Watts
• Warranty: 5 Years
