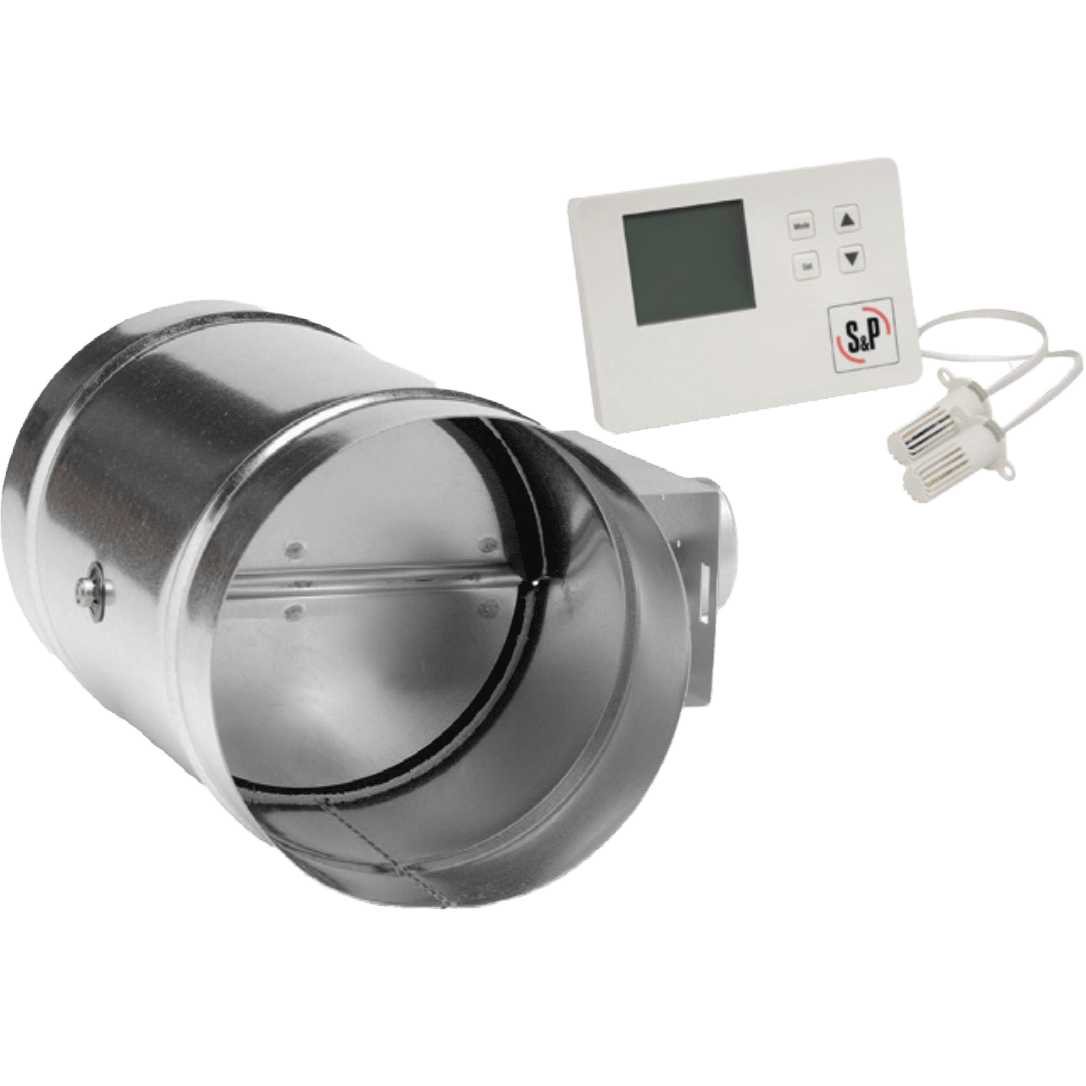

Soler & Palau MD8-ES24VK Fresh Air Motorized Damper & Controller 24V 8-Inch

Product Description

The SOLER & PALAU MD8-ES24VK is an Outside Air Motorized Damper Kit designed to introduce fresh air into residences, complying with ventilation standards and building codes. This 8-inch, 24V motorized damper is normally closed and power-open, controlled by a 24V temperature/humidity monitoring system. It integrates with forced-air systems to regulate outside air sequencing and can command the HVAC blower for efficient distribution. Operating at 24V with 6W power consumption and a maximum of 0.3 Amps, it ensures controlled ventilation.

• Allows fresh air into residences while meeting ventilation standards and building codes.
• Features a power-open, normally closed, 24V motorized damper for round ducts.
• Controlled by a 24V temperature/humidity monitoring system for precise ventilation.

Product Highlights

Integrated ES24V control offers advanced temperature/humidity monitoring and eco-mode for optimized fresh air distribution.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: MD8-ES24VK

Technical Specifications

• Brand: SOLER & PALAU
• MPN: MD8-ES24VK
• Type: Damper
• Certifications: UL
• Color: Gray
• Controls: Electronic
• Housing Material: Galvanized Steel
• Maximum Amperage: 0.3 Amps
• Power Supply: Electric
• Input Voltage: 24V
• Power Consumption: 6W
• Wiring Style: Hardwired
• Frequency: 60 HZ
• Insulation Class: A
• Rated Ambient Temperature: 104 degrees F
• Noise Level: ≤ 50 dB
• Codes and Standards: ASHRAE 62.2-2010 and 2013, IRC 2012 and 2015
• Compatible With: RF-reFresh, TD-MIXVENT, TD-SILENT, and PV-POWERVENT Series
