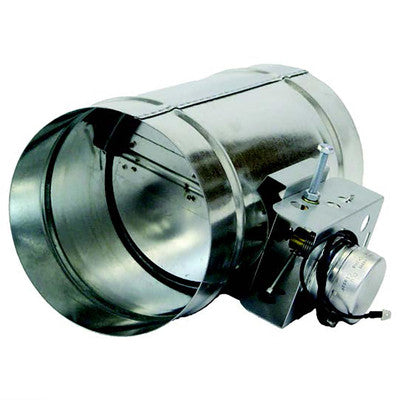

Soler & Palau MD6 6-Inch 24V Motorized Damper

Product Description

The Soler & Palau MD6 is a six-inch motorized damper designed for round duct applications. This normally closed damper operates at twenty-four volts and is ideal for controlling outside air in forced-air systems. It is made of durable steel, allowing for vertical or horizontal installation.

• Designed for six-inch round ducts
• Compatible with a twenty-four volt power supply
• Constructed from steel for enhanced durability

Product Highlights

The MD6 is suitable for use with temperature and humidity control systems to meet ventilation standards.

Product Information

Standard Information

• Brand: Soler & Palau
• MPN: MD6

Technical Specifications

• Damper Type: Motorized Volume Damper
• Duct Size: 6 inches
• Operating Voltage: 24 VAC
• Frequency: 60 Hz
• Current: 0.3 A
• Power Consumption: 6 W
• Material: Steel
• Mounting Type: Vertical or Horizontal
• Weight: 2.77 lbs
• Height: 11 inches
• Length: 10 inches
• Width: 7 inches
• Noise Level: ≤ 50 dB
• Insulation Class: A
• Ambient Temperature: 40 °C
