Soler & Palau LPD081AS Centrifugal Mounted Exhaust Fan 8 inches 115V

Product Description

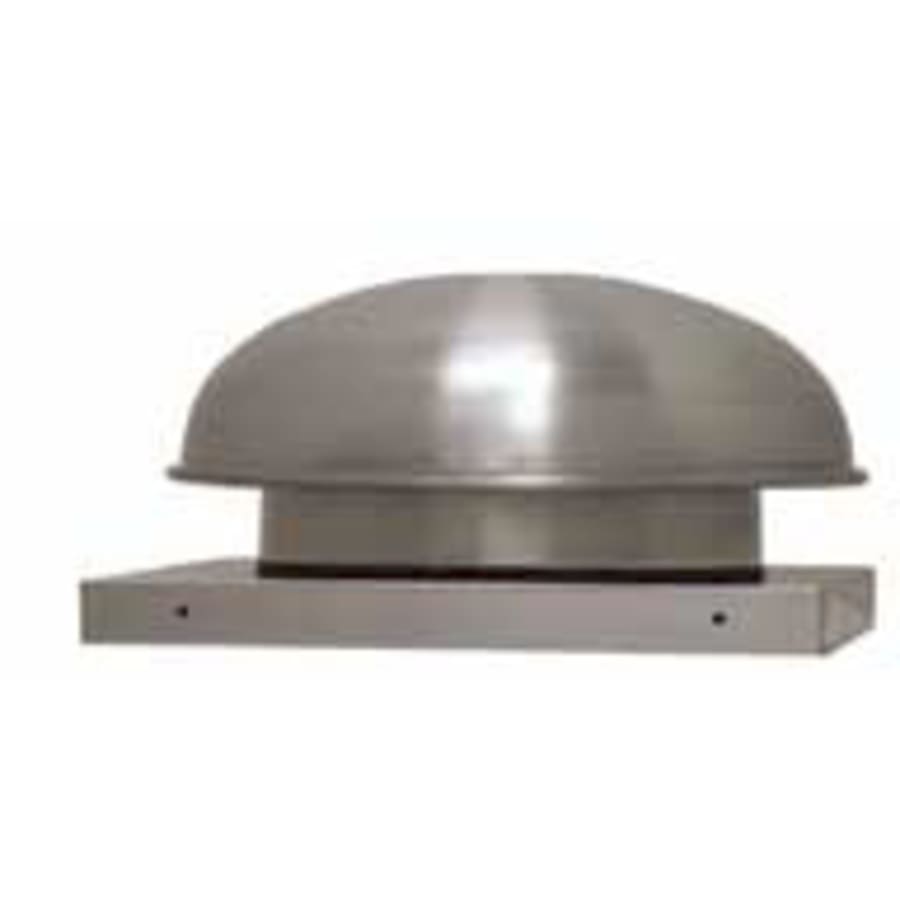

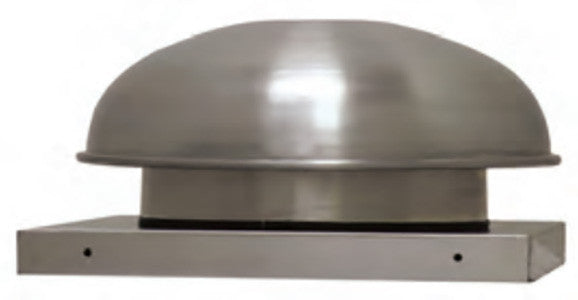

The SOLER & PALAU LPD081AS is a centrifugal mounted exhaust fan designed to exhaust air in low CFM, up to 420, high static pressure applications to 1-3/4 . It is generally used for bathroom, office, or light commercial ventilation in ducted systems and can be mounted either on the roof or wall. The housing is aluminum and allows for quick access to the motor compartment.

• Exhaust Air up to 420 CFM in High Static Pressure Applications up to 1-3/4" w.g.
• Low Profile Attractive Spun Aluminum Exterior
• Direct Drive Units have Low Sound Levels and Quiet Operation

Product Highlights

The SOLER & PALAU LPD081AS exhaust fan is ideal for bathroom, office, or light commercial ventilation. It features a low profile design and can be roof or sidewall mounted.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: LPD081AS

Technical Specifications

• Configuration: Roof/Sidewall Exhauster
• Material: Aluminum
• Mount Type: Roof, Wall
• Drive Type: Direct Drive
• Sones: 11.9
• ADA: No
• Approved for Commercial Use: Yes
• Certifications: UL
• Kitchen Approved: No
• CFM: 387
• Length: 16.5 in.
• Product Type: Light Commercial Exhauster
• Installation: Roof
• Exhaust Type: Side
• Wheel Size (In.): 8
• RPMs: 2775
• Max. Static Pressure WG (In.): 1-3/4
• Sones Level: 11.9 @ 1/2 SP
• CFM @ Zero Static Pressure: 387
• Roof Opening (In.): 11.75
• Width (in.): 16.5
• Depth (in.): 16.5
• Height (in.): 8.5
• Net Weight (lbs.): 15
• Voltage: 110-120V
