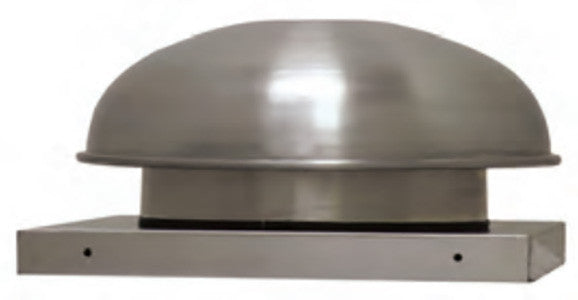

Soler & Palau LPD061AS Centrifugal Roof Mounted Exhaust Fan 115V 6 inches

Product Description

The SOLER & PALAU LPD061AS is a centrifugal roof mounted exhaust fan designed for HVAC and refrigeration applications. It features a low profile design suitable for bathrooms, offices, and light commercial spaces with ducted ventilation. The fan is roof or sidewall mountable and includes a birdscreen for protection.

• Aesthetically appealing, low profile design
• Suitable for bathrooms, offices and light commercial applications
• Aluminum housing allows for quick access to the motor compartment for easy maintenance

Product Highlights

The LPD061AS is ideal for applications needing low CFM and high static pressure. It can be mounted on the roof or wall.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: LPD061AS
• Country of Origin: US

Technical Specifications

• Product Type: Light Commercial Exhauster
• Installation: Roof
• Exhaust Type: Side
• Type of Drive: Belt Drive
• Wheel Size (In.): 6
• RPMs: 2800
• Max. Static Pressure WG (In.): 1-1/2
• Sones Level: 7.2 @ 1/2 SP
• CFM @ Zero Static Pressure: 302

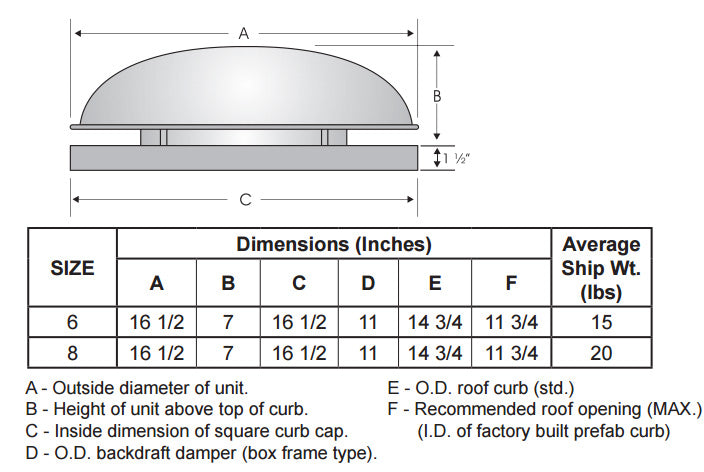

• Roof Opening (In.): 11.75
• Width (in.): 16.5
• Depth (in.): 16.5
• Height (in.): 8.5
• Net Weight (lbs.): 20
• Certifications: AMCA Air and Sound Licensed, cULus 705 Listed
• Voltage: 110-120V
• CFM: 302
• Configuration: Roof/Sidewall Exhauster
• Humidity Sensing: No
• Material: Aluminum
• Mount Type: Roof, Wall
• Drive Type: Direct Drive
• Sones: 7.2
• ADA: No
• Approved for Commercial Use: Yes
• Kitchen Approved: No
• Item: Centrifugal Mounted Exhaust Fan
• MFR #: LPD061AS
