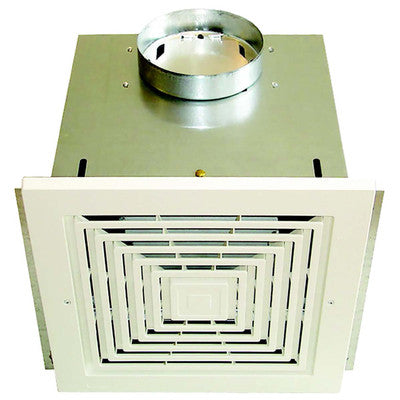

SOLER & PALAU L250E Losone Select Series Ceiling Mount Fan

Product Description

The SOLER & PALAU L250E is a ceiling-mounted exhaust fan designed for high efficiency in both ducted and non-ducted setups. This model features a centrifugal blower wheel that delivers effective airflow and high static pressure capabilities. The fan operates quietly due to its low RPM motor, which is mounted on resilient mounts to reduce noise. Service and maintenance are straightforward, thanks to the removable blower assembly and the permanently lubricated motor.

• Speed controllable for customized airflow management.
• cULus Listed for safety compliance.
• Designed for versatile mounting options in various applications.

Product Highlights

The SOLER & PALAU L250E efficiently handles air movement in residential and commercial spaces.

Product Information

Standard Information

• Manufacturer: SOLER & PALAU
• MPN: L250E

Technical Specifications

• Input Voltage: 120V
• Input Current: 0.6 A
• Speed: 1189 RPM
• Airflow (Horizontal): 296 CFM
• Sound Level (Horizontal): 1.9 Sones
• Airflow (Vertical): 280 CFM
• Sound Level (Vertical): 1.9 Sones
• Duct Orientation: Vertical
• Airflow @ 0.1 Ps: 270 CFM
• Airflow @ 0.25 Ps: 246 CFM
• CFM/Watt: 4.5
