Product Description

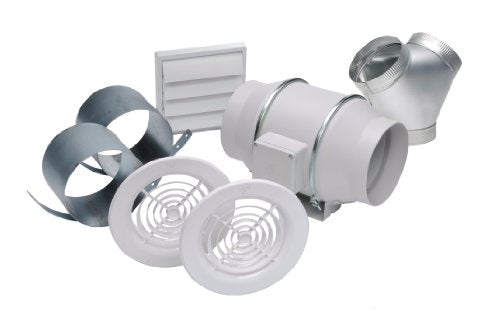

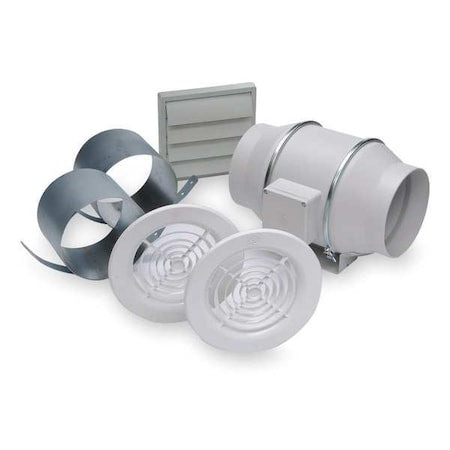

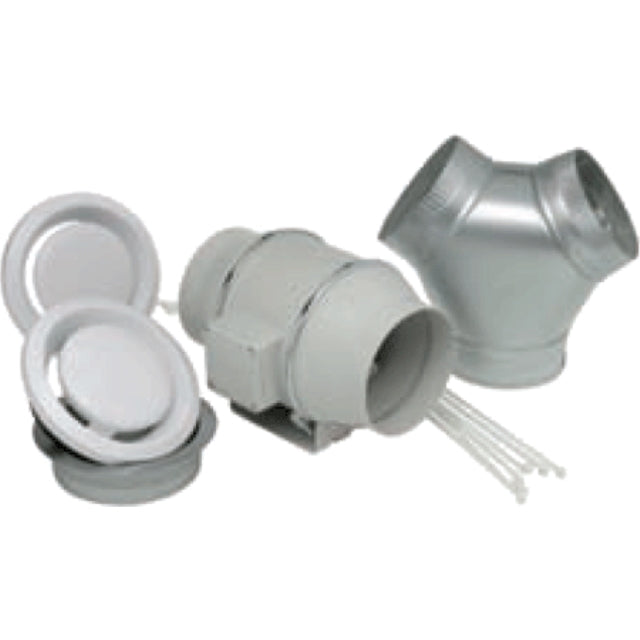

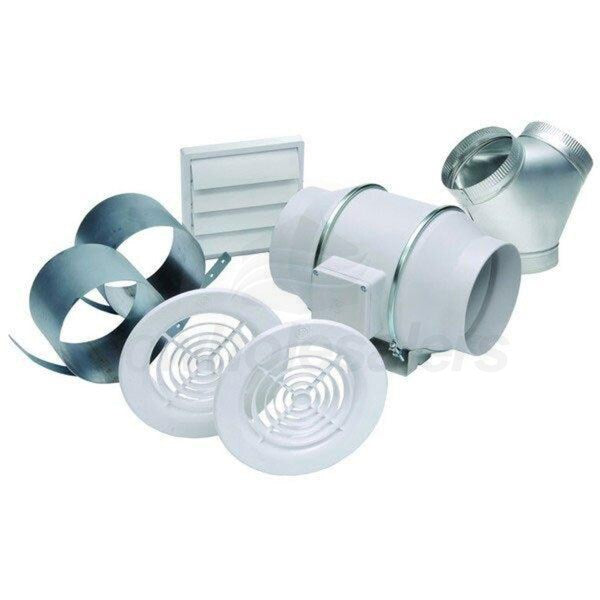

The SOLER & PALAU KIT-TD150-DV TD-MIXVENT fan kits provide the hardware needed to complete a simple in-line ducted ventilation installation. The kit includes a powerful TD in-line fan, exterior and interior grilles. It is the ideal solution for any simple in-line ducted fan installation. Features a speed controllable 2-speed motor.
- Polypropylene housing
- ABS fan blades
- Thermal link via fuse
Product Highlights
The TD-MIXVENT series is designed to maximize airflow performance with minimal noise. It is suited for residential, commercial, and industrial exhaust and intake ventilation applications.
Product Information
Standard Information
-
Brand: SOLER & PALAU
-
Manufacturer Part Number: KIT-TD150-DV
-
Country of Origin: United States
Technical Specifications
-
Vent Type: Dual
-
Light Type: None
-
UPC: 812482010466
-
Phase: 1
-
Voltage: 120 Volts
-
Type: Exhaust Fan
-
Frequency: 60 Hz
-
Product Category: Fans
-
Duct Connection: 6 Inches
-
Maximum Air Flow: 293 CFM
-
Mount Type: In-Line
-
Product Line: TD
-
Energy Star Listed: Yes
-
Brand: Soler & Palau
-
Manufacturer: Soler and Palau
-
Model / MPN: KIT-TD150-DV
-
MPN: KIT-TD150-DV
-
Number of Items: 1.0
-
Product Group: Home Improvement
-
Product Type: ELECTRIC_FAN
-
Motor Output Power: 65 W
-
Motor IP Rating: IP44
-
Nameplate Voltage: 120V AC
-
Includes: (1) Exterior Termination Louver, (1) Y Fitting, (2) Intake Grills, Mounting Bracket
-
Speed Controllable: Yes
-
Item: In-Line Duct Fan
-
Length: 8 3/8 in
-
Motor HP: 1/10 hp
-
Max. Amps: 0.54 A
-
Motor RPM: 2300/1700
-
Standards: C-UL-US
-
Application: General Purpose
-
Motor Speed: 2,300 RPM
-
Bearing Type: Ball Bearing
-
Flange Width: 1 1/8 in
-
For Fan Type: In-Line Duct Fan
-
Housing Dia.: 7 7/8 in
-
Max. Wattage: 65/54
-
Speed Control: Mfr. No. 48C172
-
Fits Duct Dia.: 6 in
-
Motor Enclosure: Totally Enclosed
-
Nominal Voltage: 120V AC
-
Housing Material: Plastic
-
Max. Inlet Temp.: 104 Degrees F
-
Number of Speeds: 1
-
Mounting Position: Horizontal or Vertical
-
CFM @ 0.000-In. SP: 293/218
-
CFM @ 0.125-In. SP: 273/193
-
CFM @ 0.250-In. SP: 227/128 cfm
-
CFM @ 0.375-In. SP: 227/128 cfm
-
CFM @ 0.500-In. SP: 206/105 cfm
-
CFM @ 0.750-In. SP: 131/24 cfm
-
CFM @ 1.000-In. SP: 35 cfm
-
Mounting Orientation: Horizontal or Vertical
-
Airflow @ 0.000 in SP: 293 cfm
-
High-Efficiency Motor: No
-
Inlet and Outlet Dia.: 5 7/8 in
-
Length (Straight Wireway): 8 3/8 in
-
High-Efficiency Motor_Broad: Standard-Efficiency Motor
-
Airflow @ 0.000 in SP - Range: 250 to 499 cfm
-
Maximum Inlet Air Temperature: 104 Degrees F
-
Airflow @ 0.000 in. SP - Range: 0 to 999 cfm
-
Energy Star: Yes
-
CFM: 218, 293
-
Duct Size: 6" Round
-
Installation Type: Ceiling, In-Line
-
UL Listed: Yes
-
UL Rating: Damp Location
-
Fan Type: In-Line Fan
-
Grille Finish: Whites
-
Humidity Sensing: No
-
Night Light: No
-
Speeds: 2
-
Certifications: UL
-
Location Rating: Damp Location
-
Blade Diameter: 6"
-
Drive Type: Direct
-
Harmonized System Code: 841459
-
Hertz: 60
-
Horsepower: 0.1
-
Speed: Variable Speed
-
Watts: 65
-
California Prop 65 Warning: No
-
Collection: TD Kit
-
Country of Origin: Spain
