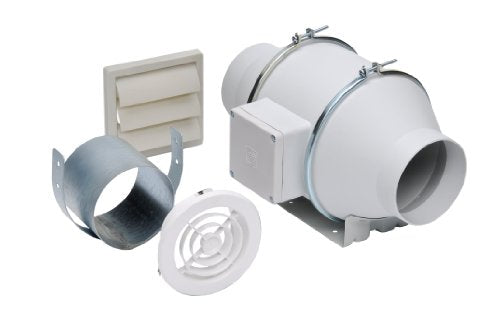

Soler & Palau KIT-TD100X In-line Exhaust Fan Kit 120V 4 inch Duct

Product Description

The SOLER & PALAU KIT-TD100X is an in-line, 2-speed mixed flow duct fan kit designed for 4-inch ducts. Operating at 120V, 60 Hz, single phase, it has a maximum amperage of 0.28. This fan provides air flow capacities up to 135 CFM. Featuring a ball bearing motor, it withstands a maximum inlet temperature of 104 degrees F. The thermoplastic housing supports horizontal or vertical mounting.

• Features 2-speed mixed flow operation for versatile air movement.
• Designed to fit standard 4-inch ducting for easy integration.
• Operates on 120V power, suitable for common electrical systems.

Product Highlights

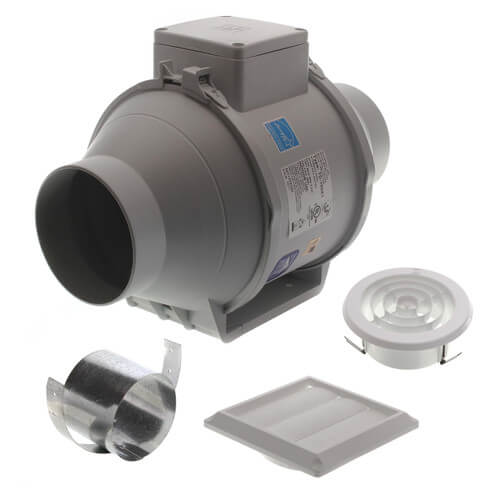

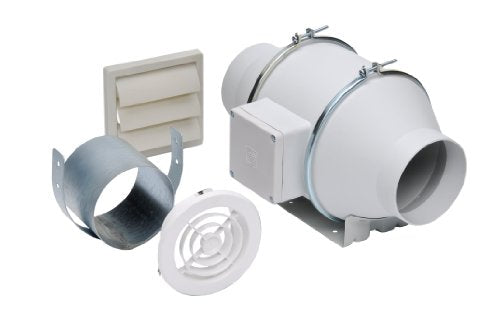

This kit includes one TD100x exhaust fan, one plastic round grille (PG-100), one exterior louvered grille (PER-100W), and an integral mounting bracket.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: KIT-TD100X

Technical Specifications

• Duct Size: 4 inches
• Input Voltage: 120V
• Motor Horsepower: 1/25 HP
• Max Power Consumption: 33/20 Watts
• Bearing Type: Ball
• Max Amperage: 0.28 Amps
• Housing Material: Thermoplastic
• Frequency: 60 Hz
• Mounting Position: Horizontal or Vertical
• Certifications: C-UL-US
• Phase: 1
• Max Inlet Temperature: 104 Degrees F
• Motor Enclosure: Totally Enclosed
• Product Type: Mixed Flow Duct Fan
• Number of Speeds: 2
• Air Flow @ 0.000-In. SP: 135/100 CFM
• Air Flow @ 0.125-In. SP: 113/77 CFM
• Air Flow @ 0.250-In. SP: 90/48 CFM
• Air Flow @ 0.375-In. SP: 53 CFM
• Motor RPM: 2100/1550
