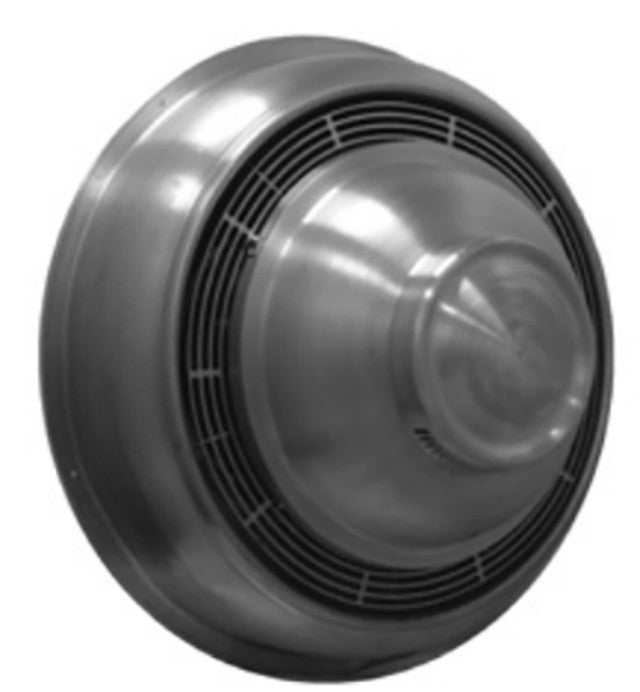

SOLER & PALAU CWD14QM1AS Direct Drive Centrifugal Sidewall Exhauster 1/2 HP

Product Description

The SOLER & PALAU CWD14QM1AS is a direct drive centrifugal sidewall exhauster designed to efficiently exhaust clean air from various types of buildings, including industrial, commercial, and institutional settings. This unit features a non-overloading centrifugal wheel, which is effective in providing high static pressure. It is versatile and can be used in both ducted and non-ducted applications.

• Exhausts clean air effectively from a variety of buildings.
• Operates quietly and requires minimal maintenance.
• Constructed with spun aluminum for weatherproof and corrosion-resistant durability.

Product Highlights

This sidewall exhauster is built for durability and efficiency in air movement, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: SOLER & PALAU
• MPN: CWD14QM1AS

Technical Specifications

• Diameter: 36 inches
• Depth: 16.5 inches
• Drive Type: Direct Drive
• RPM: 1080
• Voltage: 115
• Motor HP: 1/2
• Sones: 15.7
• Approved for Commercial Use: Yes
• Wheel Size: 14 inches
• Max. BHP: 0.5
• Max. Static Pressure WG: 1 inch
• CFM @ Zero Static Pressure: 2585
• Installation: Sidewall
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
