Soler & Palau CWD12MM1AS Exhaust Fan 1/4hp 12 inch

Product Description

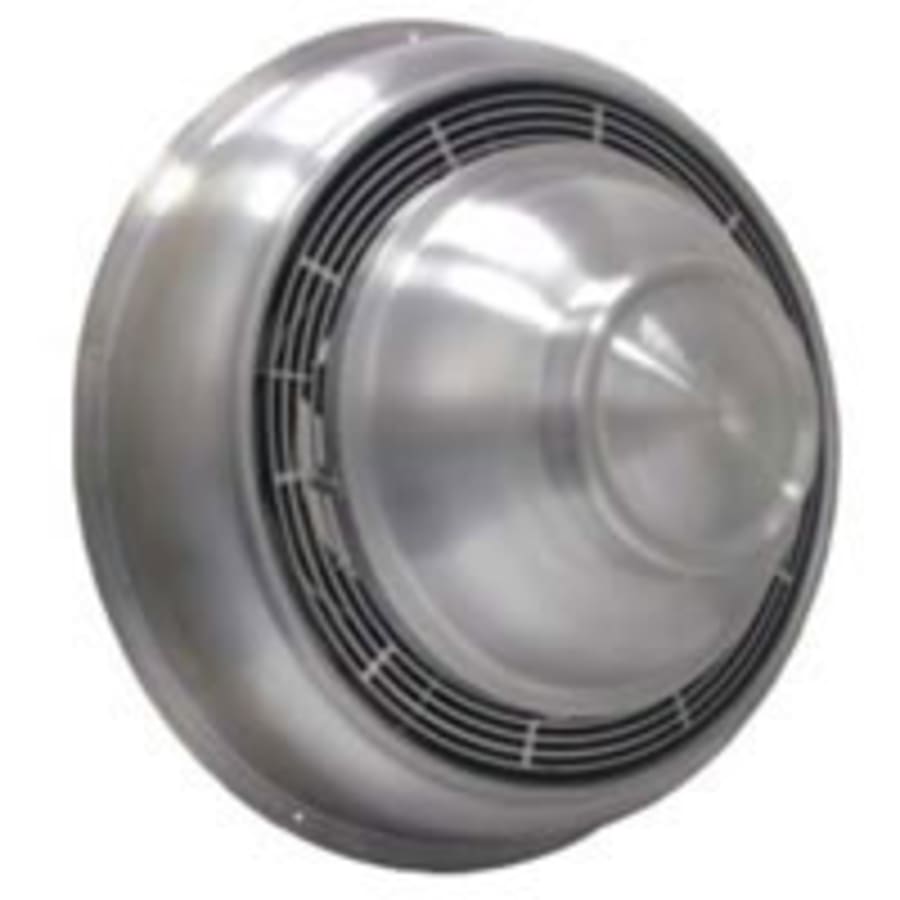

The SOLER & PALAU CWD12MM1AS centrifugal wall-mounted direct drive fan is designed to exhaust air up to 3,360 CFM with a high static pressure capability up to 1". Its spun aluminum exterior offers a pleasing appearance, weatherproof construction, and corrosion resistance. Ideal for industrial, commercial, and institutional buildings.

• Exhaust air up to 3,360 CFM in high static pressure applications up to 1 w.g.
• Attractive spun aluminum exterior
• Direct drive units have low sound levels and quiet operation

Product Highlights

This direct drive centrifugal fan is efficient at higher static pressures and is AMCA Air and Sound Licensed and UL 705 Listed.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: CWD12MM1AS
• Country of Origin: USA

Technical Specifications

• Description: S-P CWD12MM1AS EXHAUST FAN 110V 1/4hp 1075rpm 1500cfm
• Blade Diameter: 12"
• CFM: 1583
• Drive Type: Direct
• Hertz: 60
• Horsepower: 0.25
• Phase: 1 Phase
• RPM: 1583
• Speed: Variable Speed
• Voltage: 110-120V
• Configuration: Sidewall Exhaust Fan
• Humidity Sensing: No
• Material: Aluminum
• Mount Type: Wall
• Sones: 10.6
• Speeds: 1
• ADA: No
• Approved for Commercial Use: Yes
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Kitchen Approved: No
• Wheel Size (in.): 12
• Max. BHP: 0.26
• RPMs: 1100
• Max. Static Pressure WG (in.): 7/8
