Soler & Palau CWD09MH1AS Direct Drive Centrifugal Sidewall Exhauster 1/4 Horse Power

Product Description

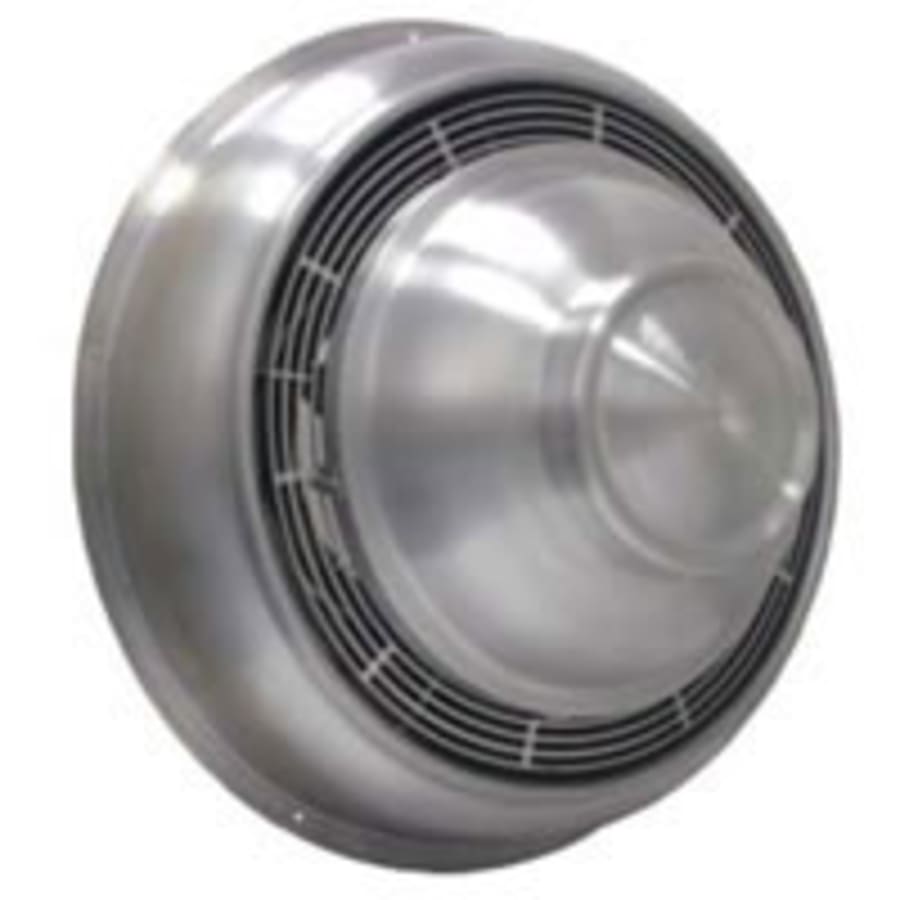

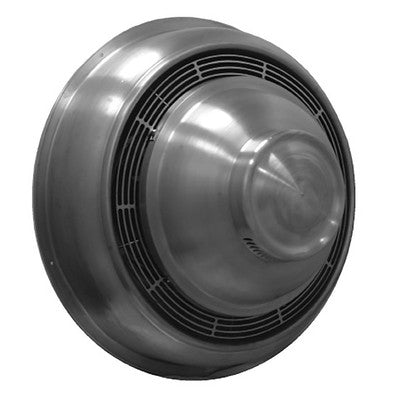

The SOLER & PALAU CWD09MH1AS direct drive centrifugal sidewall exhauster is UL705 Listed for exhausting relatively clean air from industrial, commercial, and institutional buildings. It features a spun aluminum dome that protects the inner workings from the weather. The low profile design protrudes minimally from the side wall.

• UL705 Listed for exhausting relatively clean air
• Spun aluminum dome protects inner workings from weather
• Low profile design

Product Highlights

The exhauster's dome removes for easy motor access and maintenance. It has a birdscreen and plug disconnect switch standard, with a non-overloading centrifugal wheel and high static pressure capability.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: CWD09MH1AS
• Country of Origin: United States

Technical Specifications

• Brand: Soler & Palau
• Manufacturer: Soler and Palau
• Model / MPN: CWD09MH1AS
• MPN: CWD09MH1AS
• Product Type: Commercial Exhauster
• Configuration: Sidewall Exhaust Fan
• Humidity Sensing: No
• Material: Aluminum
• Mount Type: Wall
• Drive Type: Direct Drive
• Horsepower: 0.25
• Sones: 11.4
• Speeds: 1
• ADA: No
• Approved for Commercial Use: Yes
• Certifications: AMCA Air and Sound Licensed, UL 705 Listed
• Kitchen Approved: No
• CFM: 1221
• Installation: Sidewall
• Exhaust Type: Side
• Wheel Size (in.): 9
• Max. BHP: 0.26
• RPMs: 1550
• Max. Static Pressure WG (in.): 3/4
• Sones Level: 11.4 @ 1/8 SP
• CFM @ Zero Static Pressure: 1221
• Depth (in.): 16.5
• Net Weight (lbs.): 37
• Voltage: 110-120V
• Duct Diameter: 12 in
• Overall Height: 26 in
• Overall Depth: 15 1/2 in
• Housing Material: Aluminum
• Includes: Precision Machined Cast Aluminum or Steel Hub, Standard Disconnect Switch
• Phase: 1
• Housing: Aluminum
• Vent Design: Ducted; Ductless
• Motor Speed: 1,550 RPM
• Maximum Airflow: 1,221 cfm
• Noise Level @ 0.100 in SP @ 5 ft: 11.4 sones
• Maximum Noise Level: 12.1 sones
• Exhaust Airflow @ 0.100 in SP: 1,137 cfm
• Number of Speeds: 1
• Mounting Orientation: Horizontal
• Exhaust Airflow @ 0.000 in SP: 1,221 cfm
• Frequency: 60 Hz
• Motor Enclosure: Open Drip Proof
• Standards: AMCA, UL 705 Listed
• Exhaust Airflow @ 0.250 in SP: 1,006 cfm
• Blower Wheel Material: Aluminum
• Blower Wheel Curve: Backward
• Duct Shape: Round
• Motor Horsepower: 1/3 hp
• Discharge Direction: Horizontal
• Nameplate Voltage: 115V AC
• Sensor Type: None
• Nominal Voltage: 115V AC
• Noise Level @ 0.125 in SP @ 5 ft: 11.4 sones
