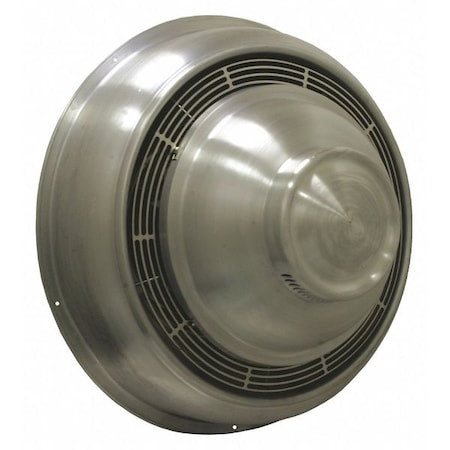

Soler & Palau CWD08IH1AS Sidewall Centrifugal Fan 1/15HP

Product Description

The SOLER & PALAU CWD08IH1AS model exhaust fan is designed to exhaust relatively clean air from industrial, commercial, and institutional buildings. The centrifugal wheel is suitable for ducted or nonducted applications. Features a spun aluminum exterior for weather protection and corrosion resistance. The removable dome provides easy access for service and cleaning.

• Weather-tight construction with aluminum birdscreen
• Nonoverloading backward inclined for safe operation in ducted systems
• Statically and dynamically balanced for smooth, quiet operation

Product Highlights

The CWD08IH1AS exhaust fan is ideal for exhausting clean air in various building types, offering weather protection and easy maintenance.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: CWD08IH1AS
• Country of Origin: United States

Technical Specifications

• MFR #: CWD08IH1AS
• Zoro #: G8725556
• UPC #: 812482019957
• Country of Origin: United States
• Overall Height: 20 in
• Overall Depth: 11 in
• Overall Width: 20 in
• Duct Diameter: 10 in
• Housing Material: Aluminum
• Item: Sidewall Exhaust Fan
• Phase: 1
• Includes: Precision Machined Cast Aluminum or Steel Hub, Standard Disconnect Switch
• Housing: Aluminum
• Duct Shape: Round
• Blower Wheel Curve: Backward
• Noise Level @ 0.100 in SP @ 5 ft: 11.6 sones
• Vent Design: Ducted; Ductless
• Exhaust Airflow @ 0.250 in SP: 405 cfm
• Mounting Orientation: Horizontal
• Maximum Airflow: 533 cfm
• Sensor Type: None
• Nominal Voltage: 115V AC
• Exhaust Airflow @ 0.000 in SP: 533 cfm
• Standards: AMCA, UL 705 Listed
• Maximum Noise Level: 11.8 sones
• Number of Speeds: 1
• Blower Wheel Material: Aluminum
• Discharge Direction: Horizontal
• Motor Speed: 1,550 RPM
• Maximum Coverage Area: 900 sq ft
• Motor Horsepower: 1/15 hp
• Motor Enclosure: Open Drip Proof
• Exhaust Airflow @ 0.100 in SP: 489 cfm
• Nameplate Voltage: 115V AC
• Noise Level @ 0.125 in SP @ 5 ft: 11.4 sones
• Frequency: 60 Hz
• CFM: 524
• Material: Aluminum
• Drive Type: Direct Drive
• RPM: 1550
• Sones: 11.4
• Voltage: 115
• Approved for Commercial Use: Yes
• Certifications: UL
• Model/Part#: CWD08IH1AS
