Soler Palau CCA2024 Curb Cap Adapter 19.75 in Id X 24 in Od

Product Description

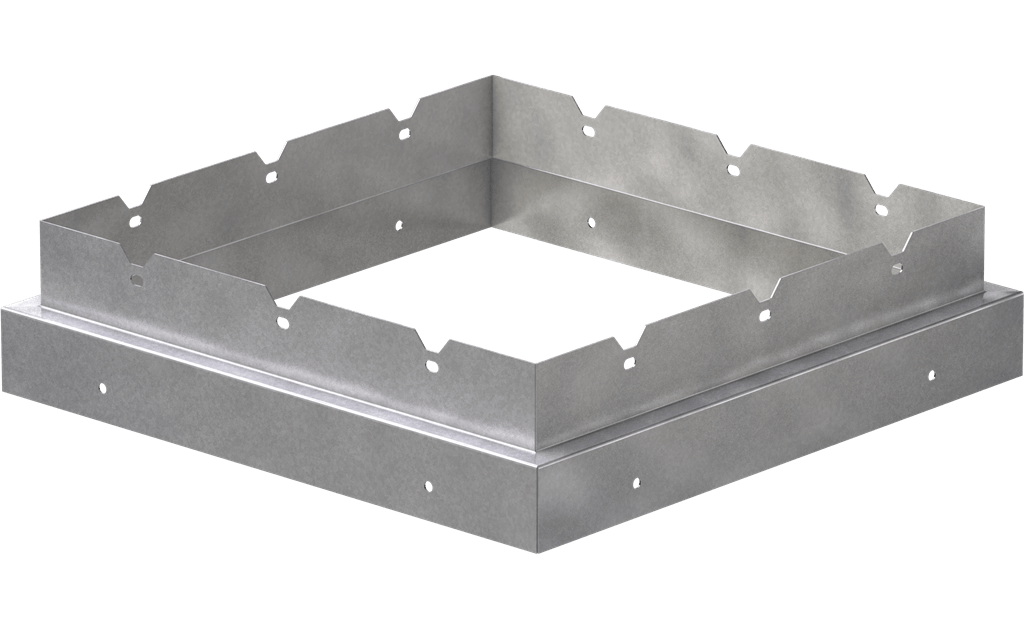

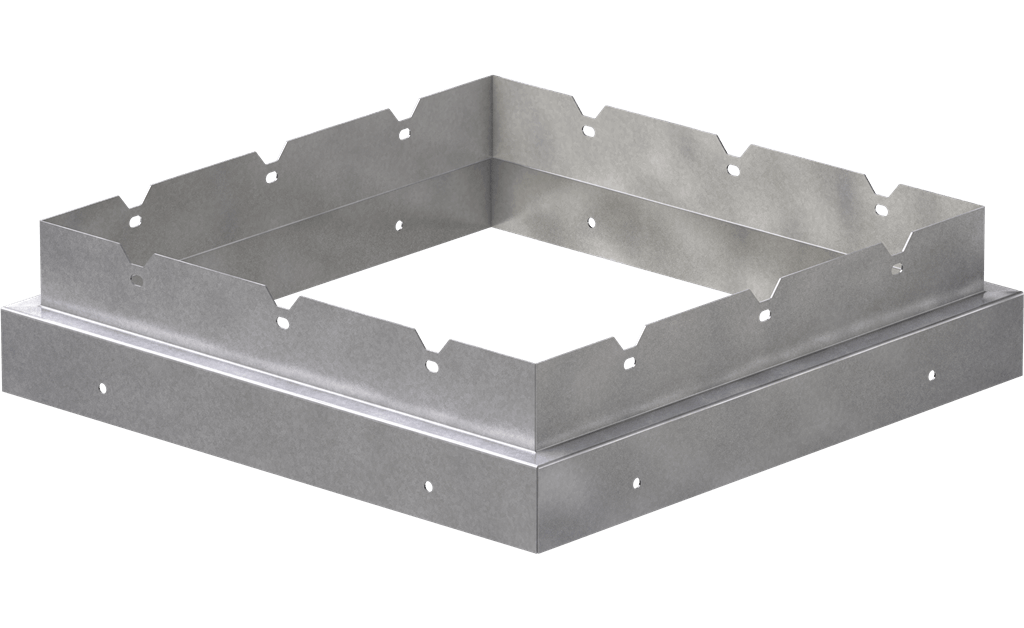

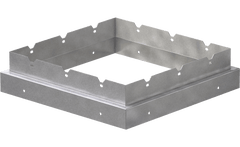

The SOLER PALAU CCA2024 is a curb cap adapter designed to bridge the dimensional gap between an existing roof curb and a replacement rooftop ventilation unit. Constructed from welded galvanized steel, the CCA2024 features pre-punched mounting holes that simplify alignment and fastening during installation. With an inside dimension of 19.75 inches and an outside dimension of 24 inches, this adapter provides a stable, level mounting platform for the new fan as it passes through the roof plane. HVAC technicians and roofing contractors use this component when a direct curb-to-unit match is not available, avoiding the cost and labor of full curb replacement.

The CCA2024 is suited for commercial and residential rooftop ventilation applications where an existing permanent roof curb must be adapted to accept a new exhaust or supply fan unit. It connects the curb to the ductwork, attic, or ceiling plenum below while providing a secure, level base above. This adapter is particularly useful in retrofit and replacement scenarios where the original equipment footprint differs from the new unit footprint.

Key Features

• Welded galvanized steel construction for corrosion resistance in outdoor rooftop environments
• Inside dimension of 19.75 inches fits over the existing roof curb opening
• Outside dimension of 24 inches accommodates the replacement fan unit base
• Pre-punched mounting holes for faster, more accurate field installation
• Provides a level mounting stage for the replacement fan at the roof penetration

Compatibility

Designed as an OEM-style replacement curb cap adapter for rooftop ventilation systems requiring a transition from an existing roof curb to a new fan unit with a differing base footprint.

Installation Notes

Installation is typically performed by a licensed HVAC technician or qualified roofing contractor. De-energize and lock out the existing ventilation unit before beginning any rooftop curb or adapter work. Ensure the existing roof curb is structurally sound and level before seating the adapter. Proper flashing and sealant application around the adapter perimeter should follow local building code requirements to maintain a weathertight roof penetration.

Technical Specifications

• Inside Dimension: 19.75 inches
• Outside Dimension: 24 inches
• Material: Welded Galvanized Steel
• Mounting: Pre-punched mounting holes

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: CCA2024
