Soler Palau 711216 Roof Mounting Curb 12 Inches

Product Description

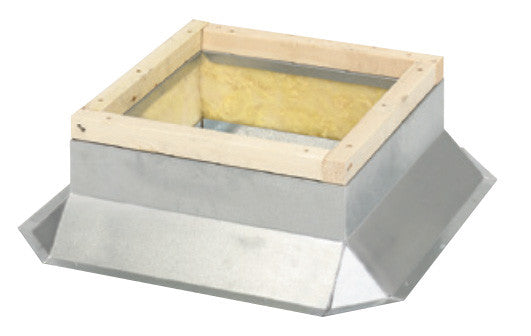

The SOLER PALAU 711216 is a prefabricated roof mounting curb designed for use with compatible roof exhauster units in commercial and industrial ventilation applications. Standing 12 inches high, this curb is constructed from heavy-gauge galvanized steel with welded seams for structural integrity. It includes a 1.5-inch wood nailer, built-in insulation, a damper shelf, and a mitered 3-inch cant for proper weatherproofing and drainage. The outside dimension of the square curb measures 16.5 inches. Licensed HVAC and roofing contractors typically install this component as part of a complete rooftop exhauster system.

This mounting curb is suited for commercial rooftop exhauster installations where a stable, insulated, and weather-resistant base is required. It is recommended when installing roof exhauster units to provide proper curb height, drainage slope, and structural support. The 711216 is compatible with SDB and STXD sizes 6 through 10, and STXB sizes 8 through 10 roof exhausters, including single-phase and three-phase models.

Key Features

• Heavy-gauge galvanized steel construction with welded seams for durability and corrosion resistance
• 12-inch curb height provides proper clearance and drainage for rooftop installations
• 1.5-inch wood nailer integrated for secure rooftop fastening
• Includes insulation and damper shelf for thermal performance and code compliance
• Mitered 3-inch cant supports proper water runoff and weatherproofing
• Outside square dimension of 16.5 inches fits designated exhauster unit bases

Compatibility

The 711216 is designed for use with all SDB and STXD roof exhausters in sizes 6 through 10, and STXB roof exhausters in sizes 8 through 10, including single-phase and three-phase models.

Installation Notes

Installation should be performed by a licensed HVAC contractor or qualified roofing professional familiar with local mechanical and building codes. The curb must be properly flashed and sealed to the roof deck before mounting the exhauster unit to prevent water infiltration. Power to any associated exhauster unit should be disconnected at the disconnect switch or circuit breaker prior to installation. Refer to the exhauster manufacturer installation manual and applicable local codes for fastener requirements and clearance specifications.

Technical Specifications

• Curb Height: 12 inches
• Outside Square Dimension: 16.5 inches
• Wood Nailer Thickness: 1.5 inches
• Cant Size: 3 inches mitered
• Material: Heavy-gauge galvanized steel
• Construction: Welded, prefabricated
• Includes: Insulation, damper shelf, mitered cant, wood nailer

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 711216
