Soler Palau 611233 Roof Mounting Curb 12 Inch

Product Description

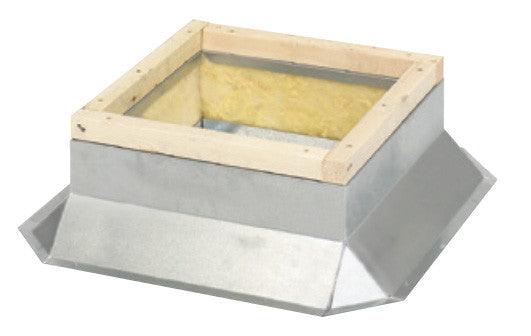

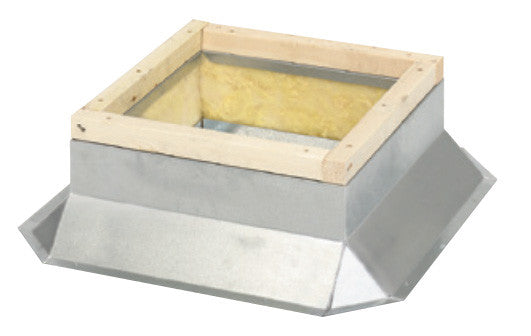

The SOLER PALAU 611233 is a 12-inch-high roof mounting curb designed for proper installation of commercial roof exhausters and ventilators. Built from heavy-gauge galvanized steel with fully welded construction, it provides a rigid, weathertight base for rooftop fan equipment. The curb includes a 1.5-inch wood nailer for secure deck fastening, a damper shelf, factory-installed insulation, and a mitered 3-inch cant for positive water drainage. The square outside dimension measures 33.75 inches. Licensed HVAC mechanics and commercial roofing contractors typically handle installation of this component as part of a complete rooftop exhaust system.

This mounting curb is intended for commercial and light industrial rooftop applications where a properly elevated, insulated base is required beneath roof exhauster or ventilator equipment. It is specifically rated for use with DB Exhausters, TXB-UL762 Exhausters, and RCXII Ventilators in sizes 24 through 26. The 12-inch height accommodates standard roof insulation thickness and provides adequate clearance for the damper assembly. This curb is suited for new construction and replacement installations on low-slope commercial roofs.

Key Features

• Heavy-gauge galvanized steel construction resists corrosion in outdoor rooftop environments
• Fully welded assembly provides structural rigidity and weather resistance
• 1.5-inch wood nailer integrated for secure attachment to roof decking
• Factory-installed insulation reduces thermal bridging and condensation
• Mitered 3-inch cant promotes positive water runoff away from the curb base
• Damper shelf included for proper damper support and positioning

Compatibility

Designed for use with SOLER PALAU DB Exhausters, TXB-UL762 Exhausters, and RCXII Ventilators in sizes 24 through 26. Outside square dimension of 33.75 inches must be confirmed against unit base dimensions before ordering.

Installation Notes

Installation should be performed by a licensed HVAC mechanic or qualified roofing contractor in accordance with local mechanical codes and the equipment manufacturer's guidelines. Ensure the roof deck is structurally adequate to support the combined weight of the curb and fan unit before fastening. Secure the curb to the roof deck through the wood nailer using appropriate fasteners for the decking material, then flash and seal the curb perimeter per standard commercial roofing practice. Power down all associated electrical circuits before mounting the fan unit to the curb.

Technical Specifications

• Curb Height: 12 inches
• Outside Square Dimension: 33.75 inches
• Wood Nailer Height: 1.5 inches
• Cant Size: 3 inches mitered
• Material: Heavy-gauge galvanized steel
• Construction: Fully welded
• Includes: Insulation, damper shelf, mitered cant, wood nailer

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 611233
