Soler Palau 611227 Roof Mounting Curb 12 Inches

Product Description

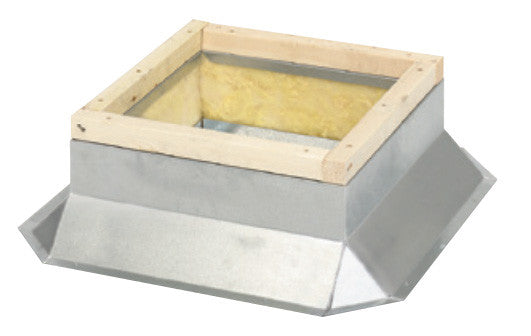

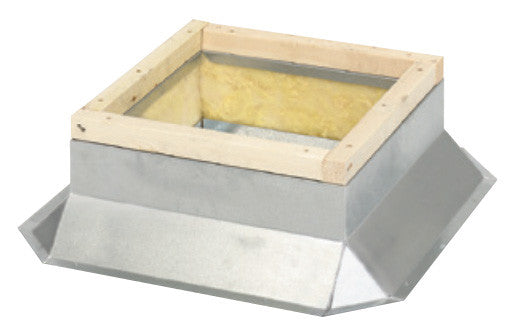

The SOLER PALAU 611227 is a 12-inch-high roof mounting curb designed for installation of commercial roof exhausters and ventilators. Built from heavy-gauge galvanized steel with fully welded construction, this curb provides a stable, weathertight base for rooftop fan equipment. It includes an integrated 1.5-inch wood nailer for fastening to the roof deck, a damper shelf, and a mitered 3-inch cant strip. The square outside dimension measures 27.75 inches. Licensed HVAC technicians and sheet metal contractors typically install this curb as part of a complete rooftop exhaust system installation.

This mounting curb is intended for rooftop exhaust and ventilation applications in commercial and light-industrial buildings. It is designed to work with DB Exhausters, TXB-UL762 Exhausters, and RCXII Ventilators in sizes 18 through 20. The curb raises the fan unit above the roof surface, supports flashing, and provides a level, insulated platform that helps prevent heat loss and condensation in the plenum area below the unit.

Key Features

• 12-inch curb height provides clearance above roof surface for proper drainage and flashing
• Heavy-gauge galvanized steel construction resists corrosion in outdoor rooftop environments
• Fully welded seams for structural rigidity and weathertight integrity
• 1.5-inch wood nailer included for secure fastening to roof deck framing
• Mitered 3-inch cant strip simplifies flashing installation at the curb base
• Includes damper shelf and factory insulation for thermal performance

Compatibility

Designed for use with SOLER PALAU DB Exhausters, TXB-UL762 Exhausters, and RCXII Ventilators in sizes 18 through 20.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified roofing contractor familiar with rooftop mechanical equipment. Ensure the roof deck framing is structurally adequate to support the curb and fan assembly before fastening. The curb should be set level and flashed in accordance with local building codes and roofing manufacturer requirements to maintain roof warranty and weathertight performance. Shut down all electrical power to associated equipment before mounting or connecting the fan unit to the curb.

Technical Specifications

• Curb Height: 12 inches
• Outside Dimension (Square): 27.75 inches
• Wood Nailer Height: 1.5 inches
• Cant Strip: 3 inches mitered
• Construction: Heavy-gauge galvanized steel, fully welded
• Includes: Insulation, damper shelf, mitered cant strip, wood nailer

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 611227
