Soler Palau 611222 Roof Mounting Curb Ksf Fan Size 9

Product Description

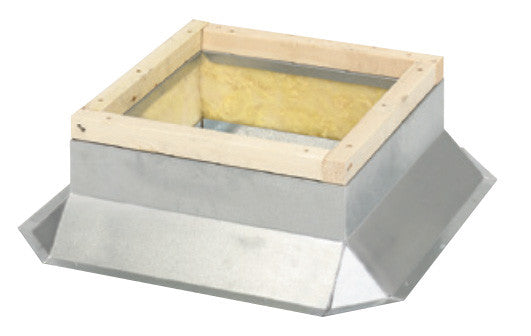

The SOLER PALAU 611222 is a roof mounting curb designed for use with KSF Filtered Roof Supply Fan Size 9. Built from heavy gauge galvanized steel with fully welded construction, this curb stands 12 inches high and provides a stable, weather-resistant base for rooftop fan installations. The outside dimension of the square curb measures 22.25 inches. It includes a 1.5 inch wood nailer, insulation, a damper shelf, and a mitered 3 inch cant to support a clean, code-friendly installation. HVAC technicians and commercial roofing contractors rely on this type of curb to properly transition fan units through roofing assemblies.

This mounting curb is intended for commercial rooftop applications where KSF Filtered Roof Supply Fans are installed. It is designed to integrate with the roofing structure, providing a sealed base that accommodates insulation and damper components. The included cant strip supports proper flashing and drainage around the curb perimeter, making it suitable for flat or low-slope commercial roof systems.

Key Features

• 12 inch curb height provides adequate clearance for rooftop fan installations
• Heavy gauge galvanized steel construction resists corrosion in outdoor environments
• Fully welded construction for structural integrity and airtight assembly
• 1.5 inch wood nailer included for simplified attachment to roof deck
• Mitered 3 inch cant strip supports proper flashing and water drainage
• Includes insulation and damper shelf for complete installation readiness

Compatibility

Designed for use with the SOLER PALAU KSF Filtered Roof Supply Fan Size 9.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified roofing contractor familiar with commercial rooftop equipment. Power to the associated fan system must be disconnected before any mounting or connection work begins. The curb should be secured to the roof deck in accordance with local building codes and the manufacturer's installation guidelines, with flashing installed per standard roofing practice. Do not modify the curb frame or cant strip dimensions, as alterations may compromise weather sealing and structural support.

Technical Specifications

• Curb Height: 12 inches
• Outside Dimension: 22.25 inches square
• Wood Nailer: 1.5 inches
• Cant Strip: 3 inches mitered
• Material: Heavy gauge galvanized steel
• Construction: Welded
• Includes: Insulation, damper shelf, wood nailer, mitered cant

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 611222
