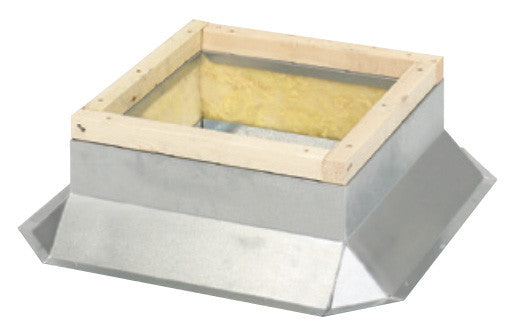

Soler Palau 611214 Roof Mounting Curb 12 Inches

Product Description

The SOLER PALAU 611214 is a 12-inch-high roof mounting curb designed to provide a stable, weather-tight base for rooftop ventilation equipment. Built from heavy-gauge galvanized steel with fully welded construction, this curb delivers the structural integrity required for secure rooftop installation. It includes a 1.5-inch wood nailer for fastening, factory-installed insulation, a damper shelf, and a mitered 3-inch cant for positive drainage and a weatherproof seal. The outside dimension of the square curb measures 14.75 inches. Licensed HVAC technicians and roofing contractors typically handle installation as part of a complete rooftop ventilation system.

The 611214 is specifically designed for use with LPD Low Profile Exhausters and RCXII Ventilators in sizes 6 through 8. It is suited for commercial and industrial rooftop applications where a code-compliant curb mount is required for exhauster or ventilator installations. The galvanized steel construction makes it appropriate for exposed exterior environments where corrosion resistance is a priority.

Key Features

• 12-inch curb height provides standard clearance for rooftop exhauster and ventilator installations
• Heavy-gauge galvanized steel with welded construction for structural durability
• 1.5-inch wood nailer included for roof deck fastening
• Factory-installed insulation helps reduce condensation and heat transfer
• Damper shelf provides support for optional damper integration
• Mitered 3-inch cant promotes positive drainage and weatherproof sealing at the roof deck

Compatibility

Designed for use with SOLER PALAU LPD Low Profile Exhausters and RCXII Ventilators in sizes 6 through 8, with an outside square dimension of 14.75 inches.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified roofing contractor familiar with local building codes and manufacturer guidelines. Power to any associated ventilation equipment must be disconnected before mounting or connecting the unit to the curb. The curb should be secured to the roof deck using fasteners appropriate for the deck material, with flashing applied per local roofing code to ensure a weathertight seal. Do not modify the curb structure, as doing so may compromise the fit with compatible equipment and void any applicable warranty.

Technical Specifications

• Curb Height: 12 inches
• Outside Dimension (Square): 14.75 inches
• Wood Nailer Height: 1.5 inches
• Cant Height: 3 inches (mitered)
• Material: Heavy-gauge galvanized steel
• Construction: Welded
• Includes: Insulation, damper shelf, mitered cant

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 611214
