Soler Palau 411011 11 Inch Gravity Damper Roof Exhauster

Product Description

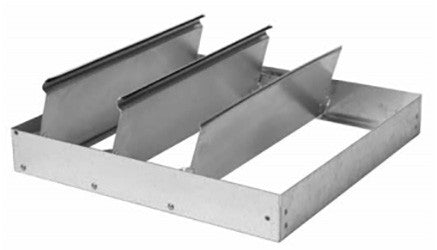

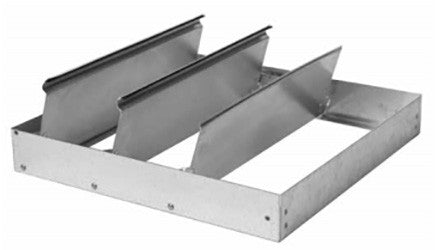

The SOLER PALAU 411011 is an 11-inch gravity backdraft damper designed for horizontal-mount roof exhauster applications. It features a galvanized frame that is 2 inches deep with aluminum louver blades. A felt seal along the leading edge of each louver provides quiet closing. The spring-assisted design allows blades to open quickly under airflow and close tightly when the fan stops, preventing unwanted backdraft. Licensed HVAC technicians and ventilation contractors install this damper as part of a complete exhaust system on commercial or industrial rooftop units. Outer dimensions are 10.75 inches by 10.75 inches.

This damper is intended for horizontal-mount exhaust applications on rooftop ventilation equipment. It is rated for use with LPD Low Profile Exhausters in sizes 6 through 8, and CWD Exhausters in size 8. An optional motor kit, part number 411611, is available for powered operation. This damper is not approved for use in grease exhaust applications and must not be installed in explosive or flammable airstream environments. It is suited for general commercial ventilation where backdraft control is required.

Key Features

• Spring-assisted aluminum blades open quickly under exhaust airflow
• Felt seal on louver leading edges reduces noise on blade closure
• Galvanized frame construction resists corrosion in rooftop environments
• Frame depth of 2 inches for straightforward integration with compatible exhausters
• Compatible with optional motor kit 411611 for motorized damper operation
• Not rated for grease, explosive, or flammable airstream applications

Compatibility

Designed for use with LPD Low Profile Exhausters sizes 6 through 8, and CWD Exhausters size 8. Optional motor kit 411611 is available but must not be used in explosive or flammable areas or airflows. Not suitable for grease exhaust applications.

Installation Notes

Installation should be performed by a licensed HVAC technician or qualified ventilation contractor. Disconnect and lock out all power to the exhaust fan unit before mounting the damper. Verify the mounting orientation is horizontal as required by this product type. Do not install this damper in grease duct systems or any environment with explosive or flammable airstreams.

Technical Specifications

• Nominal Size: 11 inches
• Outer Dimensions: 10.75 inches x 10.75 inches
• Frame Depth: 2 inches
• Frame Material: Galvanized Steel
• Blade Material: Aluminum
• Mount Orientation: Horizontal
• Blade Actuation: Spring-assisted gravity
• Blade Seal: Felt leading edge

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 411011
