Soler Palau 100072 Belt Tensioner Size 24 Roof Exhausters

Product Description

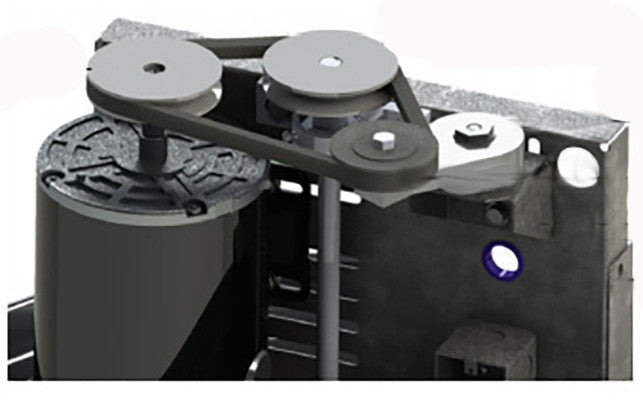

The SOLER PALAU 100072 is an automatic belt tensioner designed for size 24 roof exhauster units. It eliminates the need to manually adjust belt tension during installation or routine service, reducing the risk of over-tensioning drive components. Factory-installed at the time of the original unit order, the 100072 is integrated into the drive assembly before the exhauster ships. Benefits include longer belt service life, improved drive efficiency, and a reduction in start-up and ongoing maintenance costs. It also helps prevent drive components from snagging obstructions during operation. HVAC technicians and rooftop equipment installers working with compatible size 24 models will find this tensioner a functional upgrade over manual belt adjustment.

The 100072 is intended for use with SOLER PALAU DB and TXB size 24 roof exhauster models. It is a factory-only option and must be specified and ordered at the time the roof exhauster unit is purchased. It is not a field-retrofit part. This tensioner is suited to commercial rooftop ventilation applications where belt-driven exhauster systems are specified and where minimizing maintenance intervals is a priority.

Key Features

• Automatic belt tensioning eliminates manual adjustment during installation and service
• Reduces risk of over-tensioning belts and drive components
• Extends belt service life through consistent, controlled tension
• Improves overall drive efficiency compared to manually tensioned systems
• Helps prevent drive components from snagging obstructions
• Factory-installed — must be ordered at time of roof exhauster purchase

Compatibility

Compatible with SOLER PALAU DB and TXB size 24 roof exhauster models. This part must be specified at time of unit order as it is factory-installed and is not available as a field-retrofit component.

Installation Notes

The 100072 is factory-installed by SOLER PALAU and is not a field-serviceable replacement part. HVAC technicians should confirm tensioner specifications at the time of unit procurement. Before performing any service on belt-driven rooftop exhauster systems, disconnect and lock out all electrical power to the unit in accordance with NFPA 70E lockout/tagout procedures. Inspect drive components per the manufacturer service schedule during routine maintenance visits.

Technical Specifications

• Application: Size 24 Roof Exhausters
• Compatible Models: DB and TXB Size 24
• Installation Type: Factory-installed

Standard Information

• Brand: SOLER PALAU
• Manufacturer Part Number: 100072
