Soler And Palau STXB12RHULQH1S Upblast Exhaust Fan 1/2HP 1Ph 1800rpm

Product Description

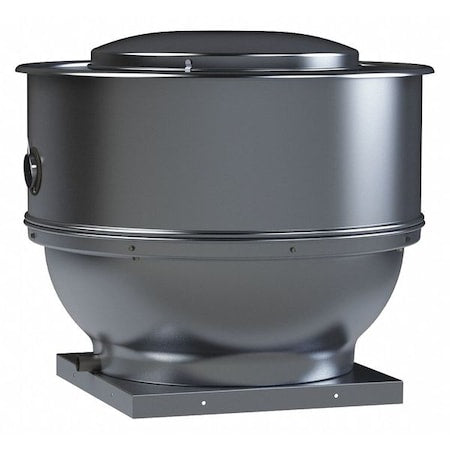

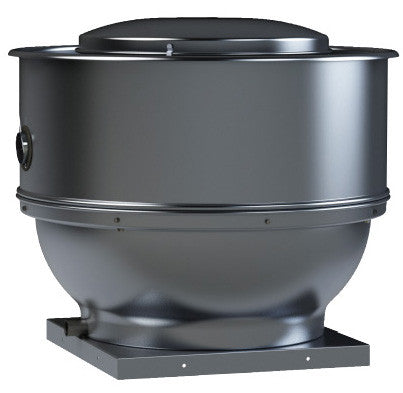

The SOLER & PALAU STXB12RHULQH1S is an upblast belt direct drive centrifugal exhaust fan with an attractive spun aluminum exterior. Belt drive results in lower operating RPM and sound levels. The non-overloading backward inclined wheel is designed for efficiency at higher static pressures. It is UL762 certified for grease applications.

• Attractive spun aluminum exterior.
• Belt drives permit easy performance adjustments when needed.
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures.

Product Highlights

Ideal for restaurant hoods, kitchen exhaust ventilation, fume and smoke removal, laboratory fume hood exhaust and chemical process exhaust.

Product Information

Standard Information

• Brand: SOLER & PALAU
• Manufacturer Part Number: STXB12RHULQH1S
• Country of Origin: United States

Technical Specifications

• Item [Specifications]: Upblast Exhaust Fan,1/2HP,1Ph,1800rpm
• Country of Origin (subject to change) [Specifications]: United States
• Item #: STXB12RHULQH1S
• Blade Diameter: 12"
• Blade Material: Aluminum
• CFM: 1989
• Country of Origin: USA
• Drive Type: Belt
• Harmonized System Code: 841459
• Hertz: 60
• Horsepower: 0.5
• Made in the USA: Yes
• Phase: 1 Phase
• RPM: 1989
• Speed: 1 Speed
• Voltage: 110-120V
• Product Type: Restaurant Exhauster
• Installation: Roof or Sidewall
• Exhaust Type: Upblast
• Type of Drive: Belt Drive
• Wheel Size (in.): 12
• Max. BHP: 0.5
• Max. Static Pressure WG (in.): 1-1/4
• Sones Level: 16.5 @ 1/4 SP
• CFM @ Zero Static Pressure: 1989

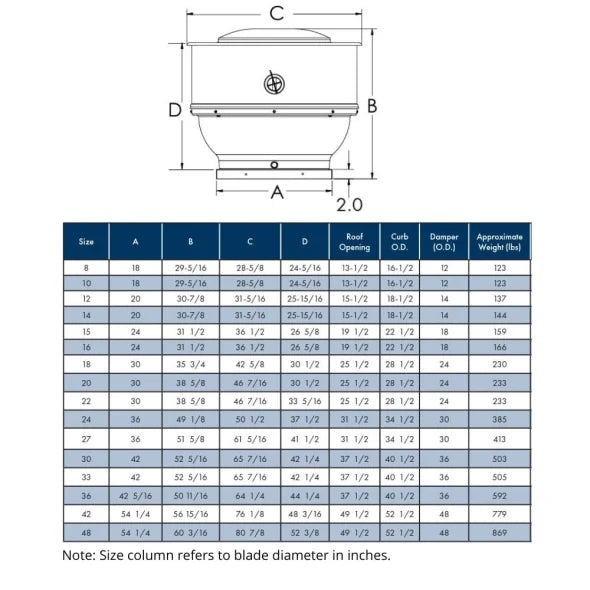

• Roof Opening (in.): 15.5
• Width (in.): 31.333
• Depth (in.): 31.333
• Height (in.): 30.875
• Net Weight (lbs.): 136
• Certifications: AMCA Air and Sound Licensed, UL 762 Listed
