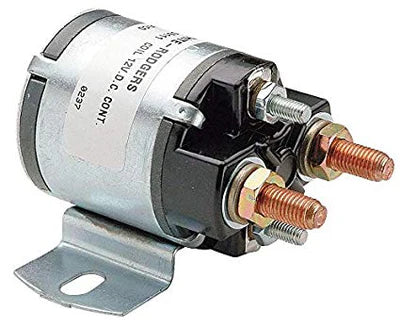

White-Rodgers 124-117111 Solenoid SPNO 36 VDC Isolated Coil Continuous Duty Normally Open Contact Rating 100 Amps Inrush 400 Amps

Product Description

The White-Rodgers 124-117111 Solenoid offers reliable control and switching for industrial applications. It features a 36 VDC isolated coil, ensuring safe operation and long life. Designed for continuous duty, this solenoid is ideal for demanding environments.

• 100 Amps continuous contact rating
• 400 Amps inrush rating
• Normally open configuration

Product Highlights

Built for various industrial applications, the White-Rodgers 124-117111 Solenoid ensures efficient power control with its SPNO (Single Pole Normally Open) contact form. Its durable construction withstands harsh conditions, making it suitable for HVAC systems, process control, and safety systems.

Product Information

Standard Information

• Brand: White-Rodgers
• MPN: 124-117111

Technical Specifications

• Coil Voltage: 36 VDC
• Contact Rating: 100 Amps continuous, 400 Amps inrush
• Contact Form: SPNO
• Coil Type: Isolated
• Coil Resistance: 120 ohms
• Contact Material: Silver Alloy
• Mounting: Standard Bracket
• Dimensions: 3.7 inches (Length), 3.6 inches (Width), 3.1 inches (Height)
• Weight: 1 pound
• Temperature Range: -40°F to 149°F
• Termination: #10-32 UNF-2A Thread (Coil), 5/16-24 UNF-2A Thread (Contact)
• Enclosure: Dust Resistant
