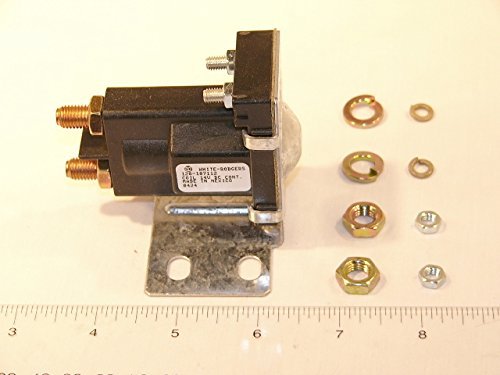

White-Rodgers 120-107112 Solenoid SPNO 14 VDC Isolated Coil

Product Description

The White-Rodgers 120-107112 Solenoid is a reliable component designed for various industrial applications. Featuring a 14 VDC isolated coil, this solenoid ensures continuous duty operation and dependable performance in demanding environments.

• Continuous duty operation
• 4 terminal SPNO L bracket
• 14 VDC operating voltage

Product Highlights

This solenoid offers superb electrical conductivity and durability, thanks to its silver alloy contacts. It is suitable for use in industrial machinery, control systems, robotics, material handling, and power generation applications.

Product Information

Standard Information

• Item Number: 120-107112
• Brand: White-Rodgers

Technical Specifications

• Type: SPNO
• Voltage: 14 VDC
• Continuous Current Capacity: 100 amps
• Inrush Current Capacity: 400 amps
• Coil Resistance: 26 ohms
• Coil Termination: Isolated with #10-32 terminal
• Contact Terminal: 45-55 inch-lbs Torque
• Temperature Range: -20°F to 155°F
