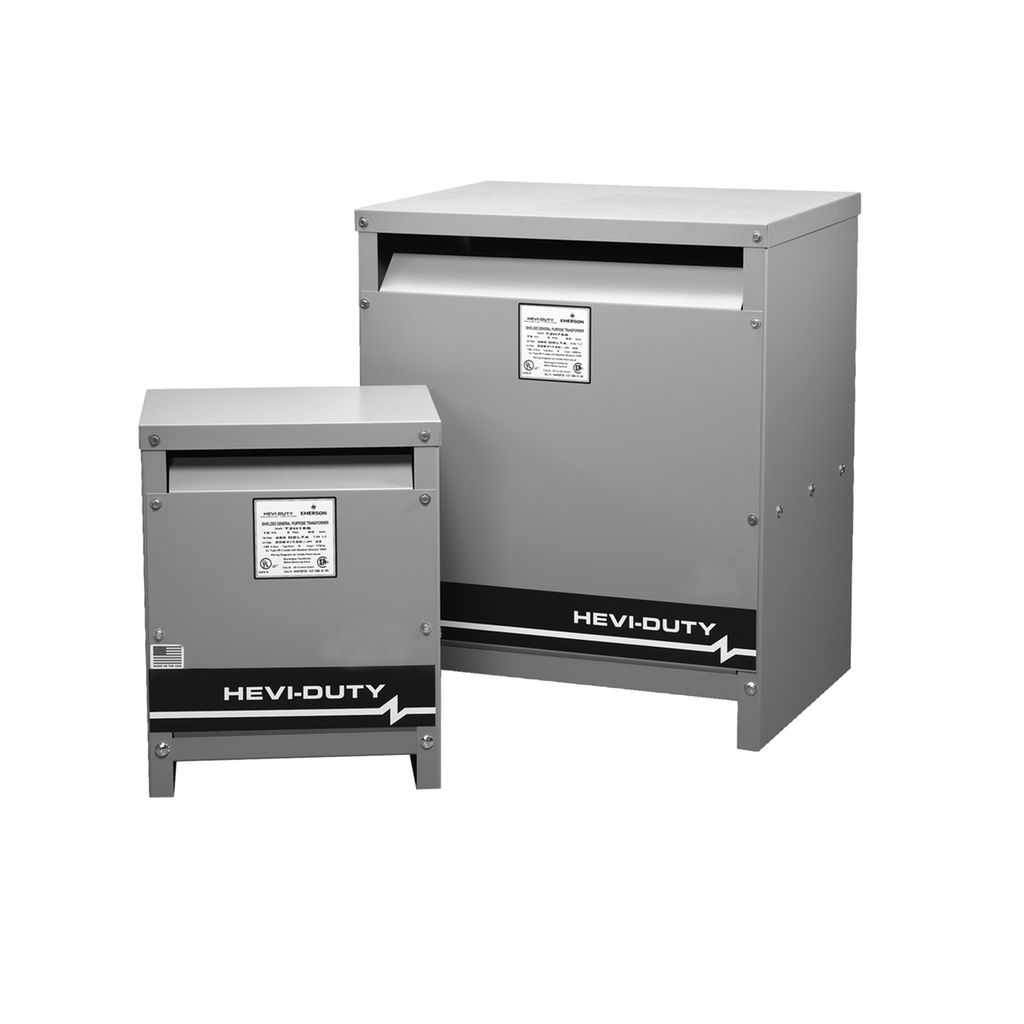

SolaHD WS-15 Transformer Weather Shield 600 Volt Class Enclosure

Product Description

The SolaHD WS-15 is a transformer weather shield designed for general purpose applications with a 600 Volt Class rating. It features a dry type construction and is classified as an isolation transformer, making it suitable for both indoor and outdoor installations. This product can step up or step down voltage and is available for single and three-phase configurations from 15 kVA to 500 kVA.

• UL listed and compliant with energy efficiency standards
• Available in NEMA Type 3R ventilated outdoor enclosures
• Panel enclosure design reduces installation time

Product Highlights

This transformer weather shield provides reliable protection and efficiency for transformer applications.

Product Information

Standard Information

• Brand: SolaHD
• Product Type: Weather Shield Enclosure

Technical Specifications

• Transformer Rating: 15/25 kVA 1-Phase
• Enclosure Type: NEMA 3R
• Dimensions: 16 inches W x 16 inches D x 28 inches H
• Used On: Dry type distribution transformer
• Energy Efficiency: Compliant with DOE 2016
• Insulation System: UL Class +220°C
• Temperature Rise: +150°C under full load
