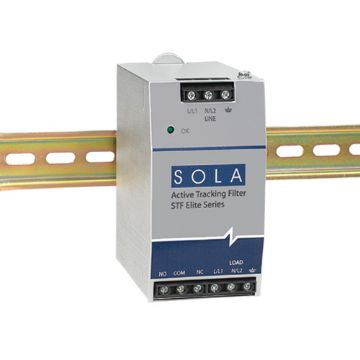

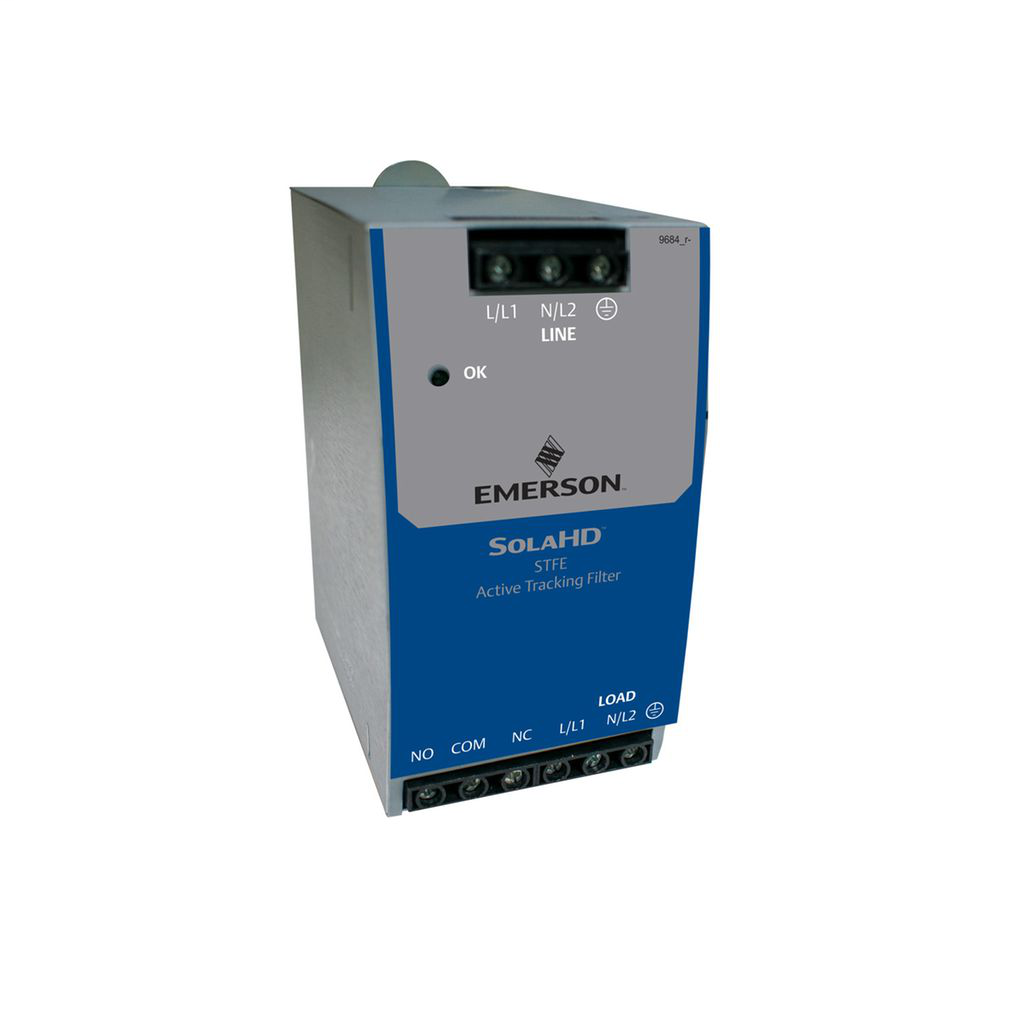

SolaHD STFE100-10N SHD STFE ACTIVE TRK FILTER 1PH 10A 120V

Product Description

The SolaHD STFE100-10N is part of the STFE Elite Series Active Tracking Filters designed for use in surge protection for electrical systems. With an input voltage range of one hundred twenty volts and a current rating of ten amps, this filter is ideal for ensuring system stability and protection against transients.

• DIN Rail mounted design for easy installation.
• Transient protection across all modes—Line to Neutral, Line to Ground, and Neutral to Ground.
• Durable construction with a surge current capacity of up to nineteen thousand five hundred amps.

Product Highlights

This device enhances equipment reliability by continuously tracking AC power and responding to surges effectively.

Product Information

Standard Information

• Manufacturer: SolaHD (Emerson)
• Type: Active Tracking Filter

Technical Specifications

• Input Voltage: 120 V
• Frequency Rating: 47-63 Hz
• Amperage: 10.0 A
• Dimensions: 2.56 in Width, 4.88 in Height, 4.56 in Length
• Connector Type: Screw Terminal Connections, 10-16 AWG
• Mounting Style: DIN Rail
• Operating Temperature: -40 °C to +50 °C
• Country of Origin: MX
