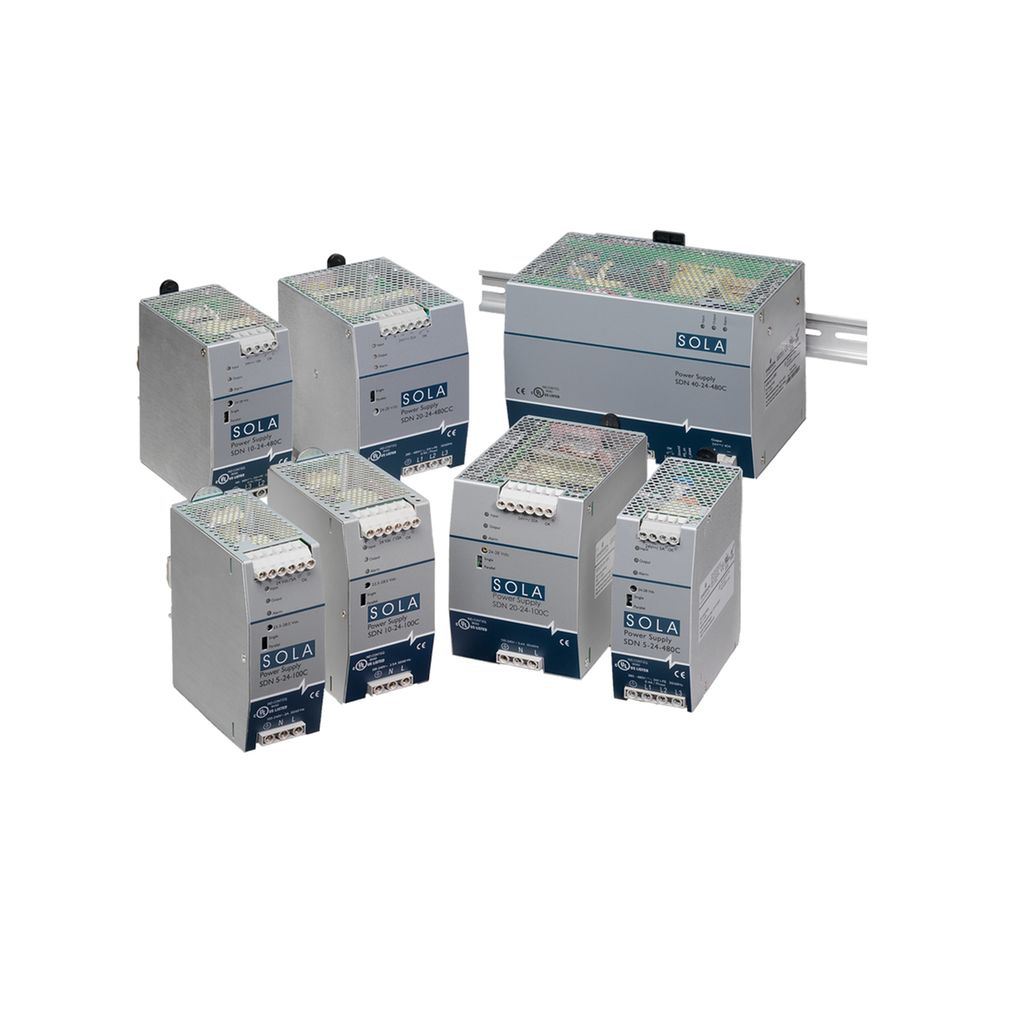

SolaHD SDN40-24-480C 24 VDC Output 40 Amp 960 W 3-Phase Din Rail Power Supply

Product Description

The SolaHD SDN40-24-480C is a 24 VDC output, 40 Amp din rail power supply. Designed for harsh environments, it features a wide operating temperature range and power boost capability. This unit is suitable for industrial applications, including machine control and packaging equipment.

• Wide operating temperature range for extreme conditions
• Power boost capability for high inrush loads
• Extensive diagnostic options with LED indicators

Product Highlights

The SDN40-24-480C is suitable for use in various hazardous locations and meets international certifications. This unit also supports redundant power supply setups when used with SolaHD redundancy modules.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Electric

Technical Specifications

• Catalog Number: SDN40-24-480C
• Voltage Rating: 380 - 400 VAC
• Wattage: 960 W
• Amperage: 40 Amp
• Width: 1.97 inches
• Height: 4.85 inches
• Length: 7.36 inches
• Material: Metal
• Phase: 3
• Efficiency: 85%
• Environmental Conditions: 90% RH
