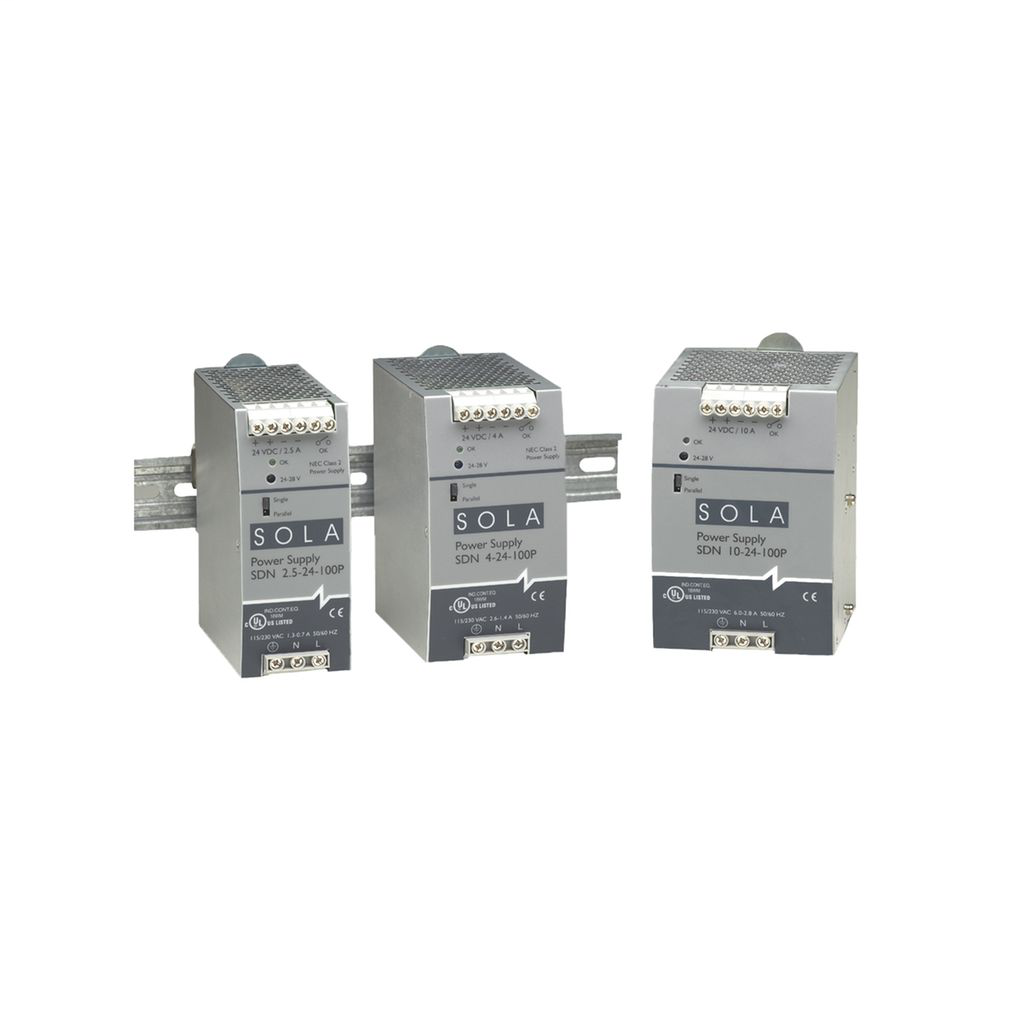

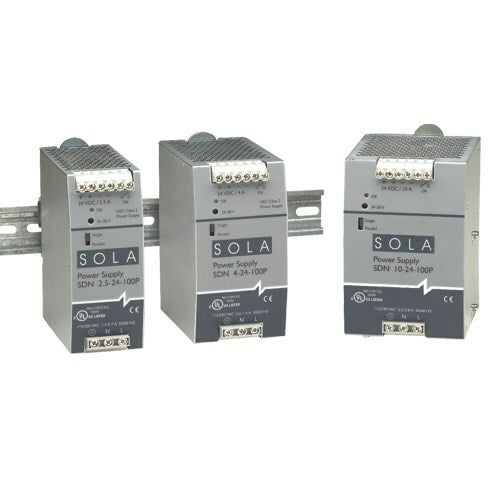

SolaHD SDN10-24-100P DIN Rail Power Supply Output: 24Vdc, 10A (240W)

Product Description

The SolaHD SDN10-24-100P is a DIN rail power supply designed for demanding applications. It provides an output of twenty-four volts direct current at ten amps, making it suitable for various industrial uses. This power supply also features sag immunity and noise tolerance to enhance reliability.

• High efficiency with power factor correction
• Wide operational temperature range: -10 degrees Celsius to 60 degrees Celsius
• Easy installation with multiple connection options

Product Highlights

The SDN10-24-100P excels in industrial machine control, conveying equipment, and packaging equipment. Its robust design and safety features ensure it can withstand challenging environments.

Product Information

Standard Information

• Brand: SolaHD
• Manufacturer: Sola Electric

Technical Specifications

• Catalog Number: SDN10-24-100P
• Input Voltage: 85 - 264 VAC at 50/60 Hz, 210 - 375 VDC
• Output Voltage: 22.5 V
• Wattage: 240 W
• Enclosure: Class 1 Zone 2, IP20
• Efficiency: 88%
• Width: 4.55 inches
• Height: 4.88 inches
• Length: 2.56 inches
